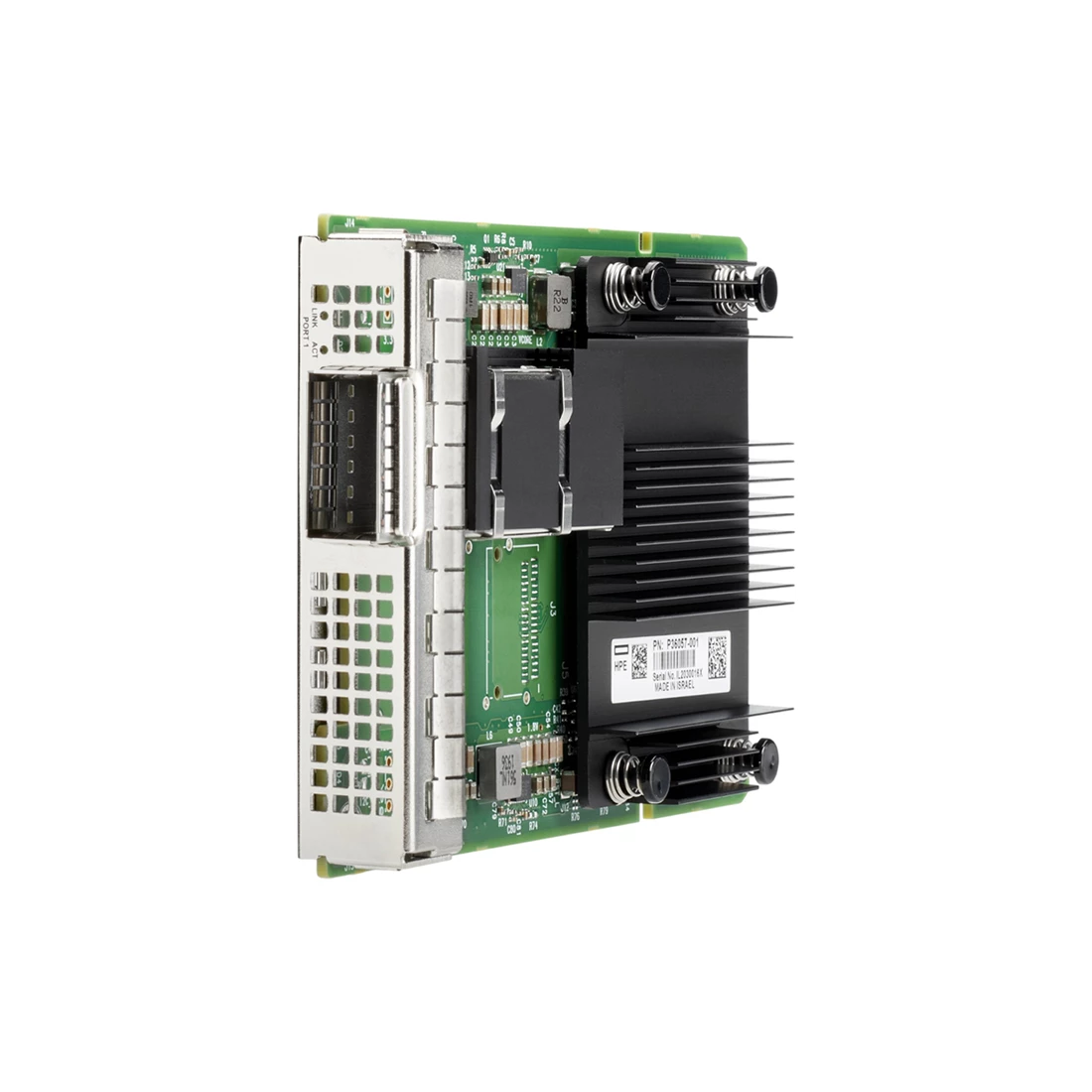

Mellanox MCX653435A-HDAI ConnectX-6 InfiniBand/Ethernet Adapter card 200Gb/s (HDR IB and 200GbE) for OCP 3.0 with host management Single-port QSFP56 PCIe4.0 x16 Internal Lock
MCX653435A-HDAI
MCX653435A-HDAI
MCX653435A-HDAI
MCX653435A-HDAI
MCX653435A-HDAI

Mellanox MCX653435A-HDAI ConnectX-6 InfiniBand/Ethernet Adapter card 200Gb/s (HDR IB and 200GbE) for OCP 3.0 with host management Single-port QSFP56 PCIe4.0 x16 Internal Lock

Part Number: MCX653435A-HDAI
BRAND: MELLANOX | More NETWORKING from MELLANOX
$1,100.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MCX653435A-HDAI Connectx-6 Infiniband/ethernet Adapter Card 200gb/s (hdr Ib And 200gbe) For Ocp 3.0 With Host Management Single-port Qsfp56 Pcie4.0 X16 Internal Lock.

Specifications

Physical :

  • Size: 2.99 In. X 4.52 In (76.00mm X 115.00mm)
  • Connector: Single Qsfp56 Infiniband And Ethernet (copper And Optical)
  • Retention Mechanism: Internal Lock

    Protocol Support :
  • Data Rate:
    - Ethernet: 1/10/25/40/100/200 Gb/s
    - Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100/hdr

  • Ethernet: 200gbase-cr4, 200gbase-kr4, 200gbase-sr4, 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

  • Infiniband: Ibta V1.3 And 1.4

  • Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Hdr (50gb/s Per Lane) Port

  • Pci Express Gen 3.0 / 4.0: Serdes 8.0gt/s / 16.0gt/s, 16 Lanes (3.0 And 1.1 Compatible)

    Power

    Power - Cable Type - Active Mode - Stby Mode
  • Typical Power - Passive Cables - 18.53w - 6.6w
  • Maximum Power - Passive Cables - 23.3w - 10.45w

    Maximum Power Available Through Qsfp56 Port: 4.55w

    Voltage: 3.3vaux, 12v

    Environmental
  • Temperature:
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c

  • Humidity:
    - Operational: 10% To 85% Relative Humidity
    - Non-operational: 10% To 90% Relative Humidity

    Altitude (operational): 3050m

    Regulatory
  • Rohs: Rohs Compliant

    Condition: Refurbished.
    Availability: In Stock.
    Our Warranty: 90 Days.
