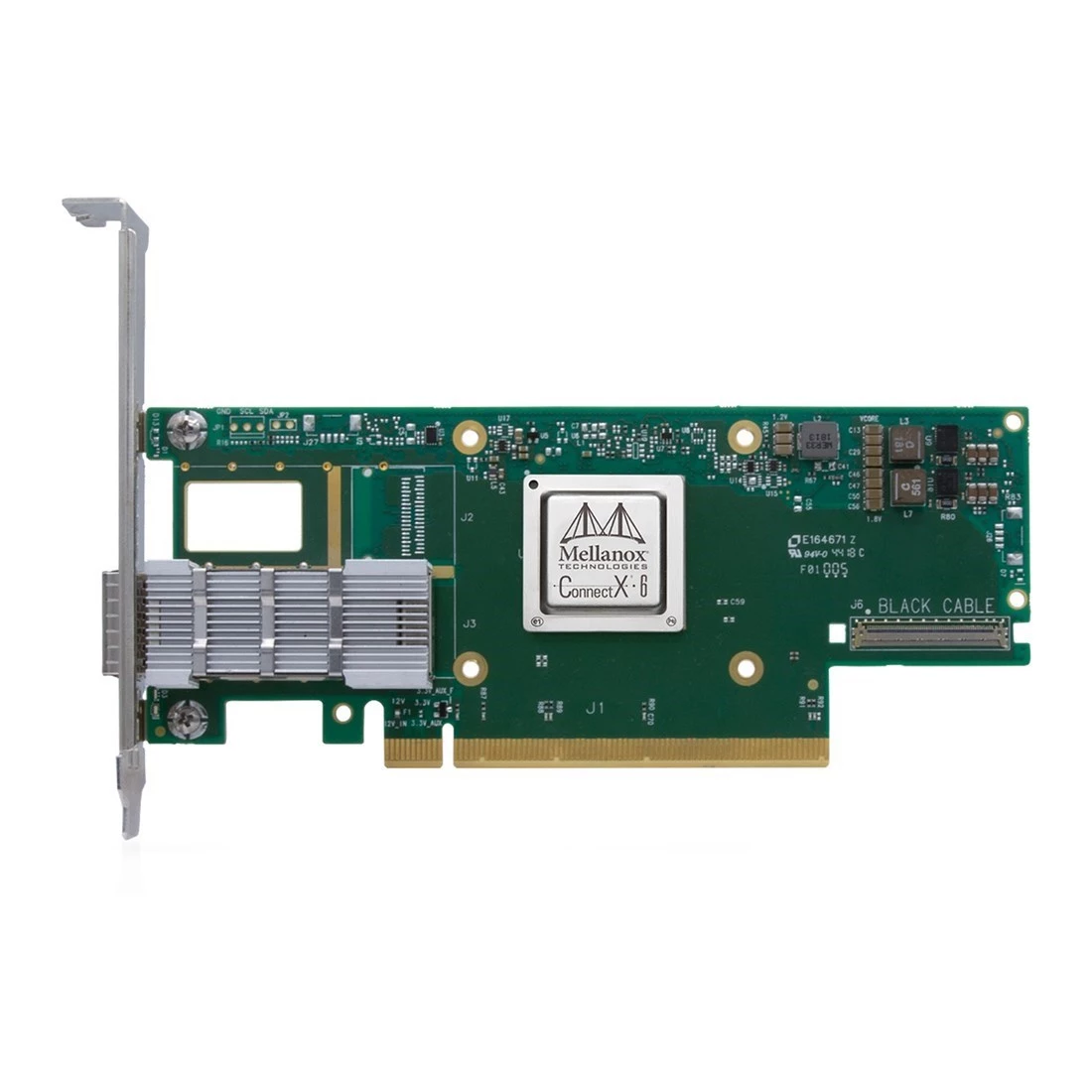

NVIDIA 900-9X6AF-0018-MT2 ConnectX6 InfiniBand/Ethernet adapter card HDR IB (200Gb/s) and 200GbE single-port QSFP56 PCIe3.0 x16 Ref
900-9X6AF-0018-MT2
900-9X6AF-0018-MT2
900-9X6AF-0018-MT2
900-9X6AF-0018-MT2
900-9X6AF-0018-MT2

NVIDIA 900-9X6AF-0018-MT2 ConnectX6 InfiniBand/Ethernet adapter card HDR IB (200Gb/s) and 200GbE single-port QSFP56 PCIe3.0 x16 Ref

Part Number: 900-9X6AF-0018-MT2
BRAND: NVIDIA | More NETWORKING from NVIDIA
$790.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA 900-9X6AF-0018-MT2 Connectx6 Infiniband/ethernet Adapter Card Hdr Ib (200gb/s) And 200gbe Single-port Qsfp56 Pcie3.0 X16

Specifications

Physical

  • Adapter Card Size: 6.6 In. X 2.71 In.

  • Connector: Single Qsfp56 Infiniband And Ethernet (copper And Optical)

    Protocol Support

  • Infiniband: Ibta V1.4

  • Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Hdr (50gb/s Per Lane) Port

  • Ethernet: 200gbase-cr4, 200gbase-kr4, 200gbase-sr4, 100gbase-cr4, 100gbase-cr2, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

  • Data Rate:

    - Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100/hdr

    - Ethernet : 1/10/25/40/50/100/200 Gb/s

    - Pci Express Gen3/4: Serdes 8.0gt/s/16gt/s, X16 Lanes (2.0 And 1.1 Compatible)

    Power And Airflow

    - Voltage : 3.3aux

    - Maximum Current: 100ma

    - Typical Power: Passive Cables 19.3w

    - Maximum Power: Please Refer To Connectx-6 Vpi Power Specifications (requires Nvonline Login Credentials)

    Maximum Power Available Through Qsfp56 Port: 5w

    Airflow (lfm)/ambient Temperature

    - Passive Cables: 350 Lfm / 55°c(heatsink To Port) 250 Lfm / 35°c(port To Heatsink)

    - NVIDIA Active 4.7w Cables: 500 Lfm / 55°c(heatsink To Port) 250 Lfm / 35°c(port To Heatsink).

    Environmental

  • Temperature:
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c

  • Humidity:
    - Operational: 10% To 85% Relative Humidity
    - Non-operational: 10% To 90% Relative Humidity

    Altitude (operational): 3050m

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 90 Days
