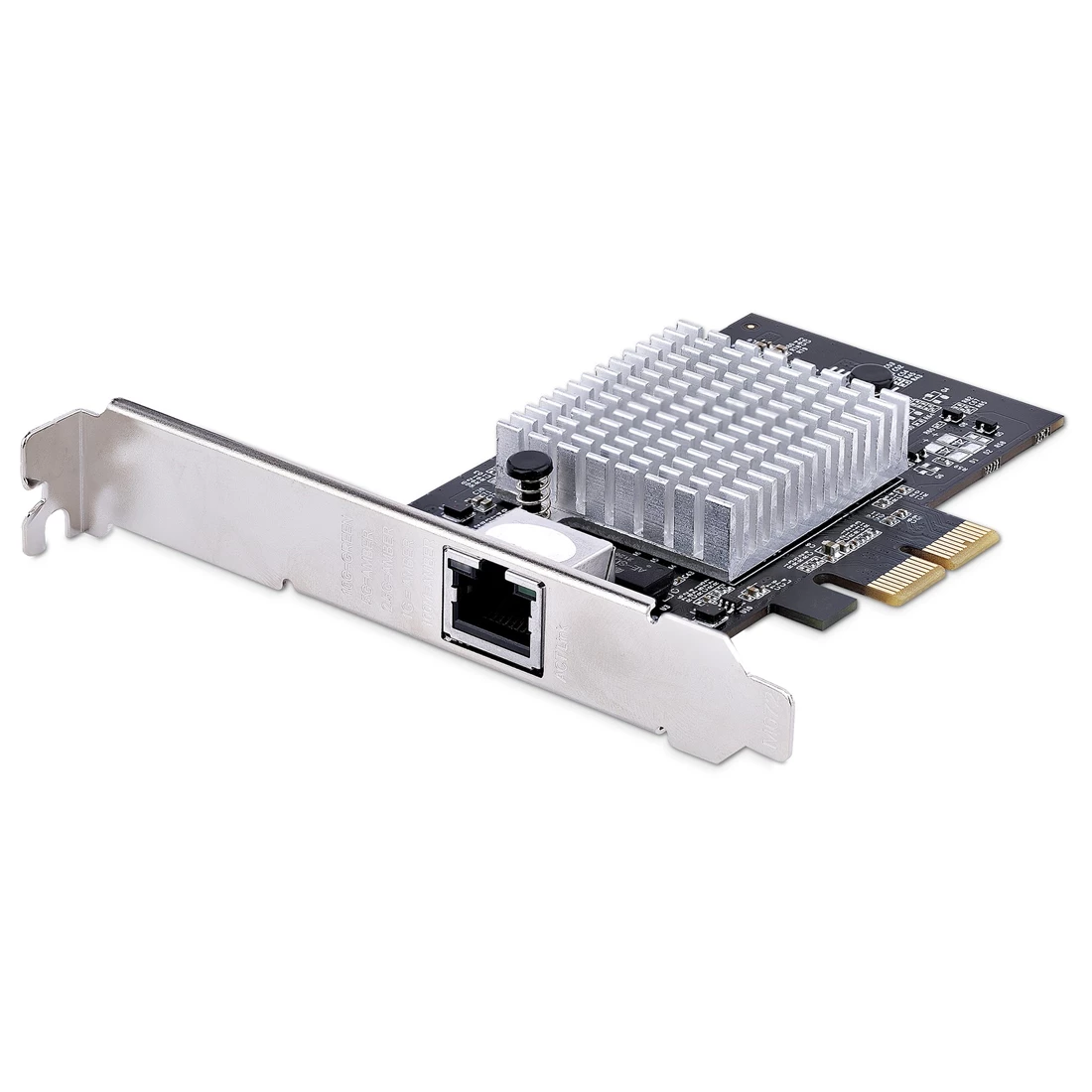

Startech ST10GSPEXNB2 1-Port 10Gbps PCIe Network Adapter Card Network Card
ST10GSPEXNB2
ST10GSPEXNB2
ST10GSPEXNB2
ST10GSPEXNB2
ST10GSPEXNB2

Startech ST10GSPEXNB2 1-Port 10Gbps PCIe Network Adapter Card Network Card

Part Number: ST10GSPEXNB2
BRAND: STARTECH | More NETWORKING from STARTECH
$210.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

STARTECH ST10GSPEXNB2 1-port 10gbps Pcie Network Adapter Card Network Card For Pc/server Low Profile Pcie Ethernet Card With Jumbo Frame Support Nic/lan Interface Card

Technical Specifications:

Connector(s) :

  • Connector Type(s): 1 - Pci Express X1
  • Internal Ports: 1 - Sata Power (15 Pin)
  • External Ports: 1 - Rj-45 (poe+)

    Environmental :
  • Operating Temperature: 0°c To 55°c (32°f To 131°f)
  • Storage Temperature: -10°c - 70°c (14°f - 158°f)
  • Humidity: 5% - 90% Rh

    Hardware :
  • Interface: Rj45 (2.5g Ethernet)
  • Bus Type: Pci Express
  • Ports: 1
  • Industry Standards:
    - Ieee 802.3at Power Over Ethernet
    - Ieee 802.3af Power Over Ethernet
    - Ieee 802.3bz (2.5gbase-t)
    - Ieee 802.3ab (1000base-t )
    - Ieee 802.3u (100base-tx )
    - Ieee 802.3i (10base-tx)
    - Ieee 802.1q (vlan)
    - Ieee 802.1p (qos)
    - Ieee 802.1as (avb)
    - Ieee 802.1x (wol)
    - Ieee P802.3az (eee)
    - Ieee 1588 (ptp)
    - Pci Express Version 2.0

  • Chipset Id: Intel - I225-v

    Led Indicators:
  • 1 - Left Led Indicator Is Link Status:
    - Solid Green: Active Link
    - Flashing Green: Activity
  • 1 - Right Led Indicator Is Link Speed
    - Solid Green: 2.5 Gbps
    - Solid Amber: 1.0 Gbps
    - Off: 100 Or 10 Mbps

    Performance:
  • Wake On Lan: Yes
  • Maximum Data Transfer Rate: 2.5gbps
  • Compatible Networks: 2.5g/1g/100mbps/10mbps
  • Auto Mdix: Yes
  • Pxe: Yes
  • Full Duplex Support: Yes
  • Jumbo Frame Support: 9k Max.
  • Promiscuous Mode: Yes

    Physical Characteristics:
  • Product Height: 1.6 Cm [0.6 In]
  • Product Length: 11.9 Cm [4.7 In]
  • Weight Of Product: 62.0 G [2.2 Oz]
  • Product Width: 5.4 Cm [2.1 In]

    Power:
  • Power Source: Bus Powered
  • Output Voltage: 48 Dc

    Os Compatibility:
  • Windows Windows 10, 11
  • Windows Server 2019, 2022
  • Linux 5.8.x And Up - Lts Versions Only

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
