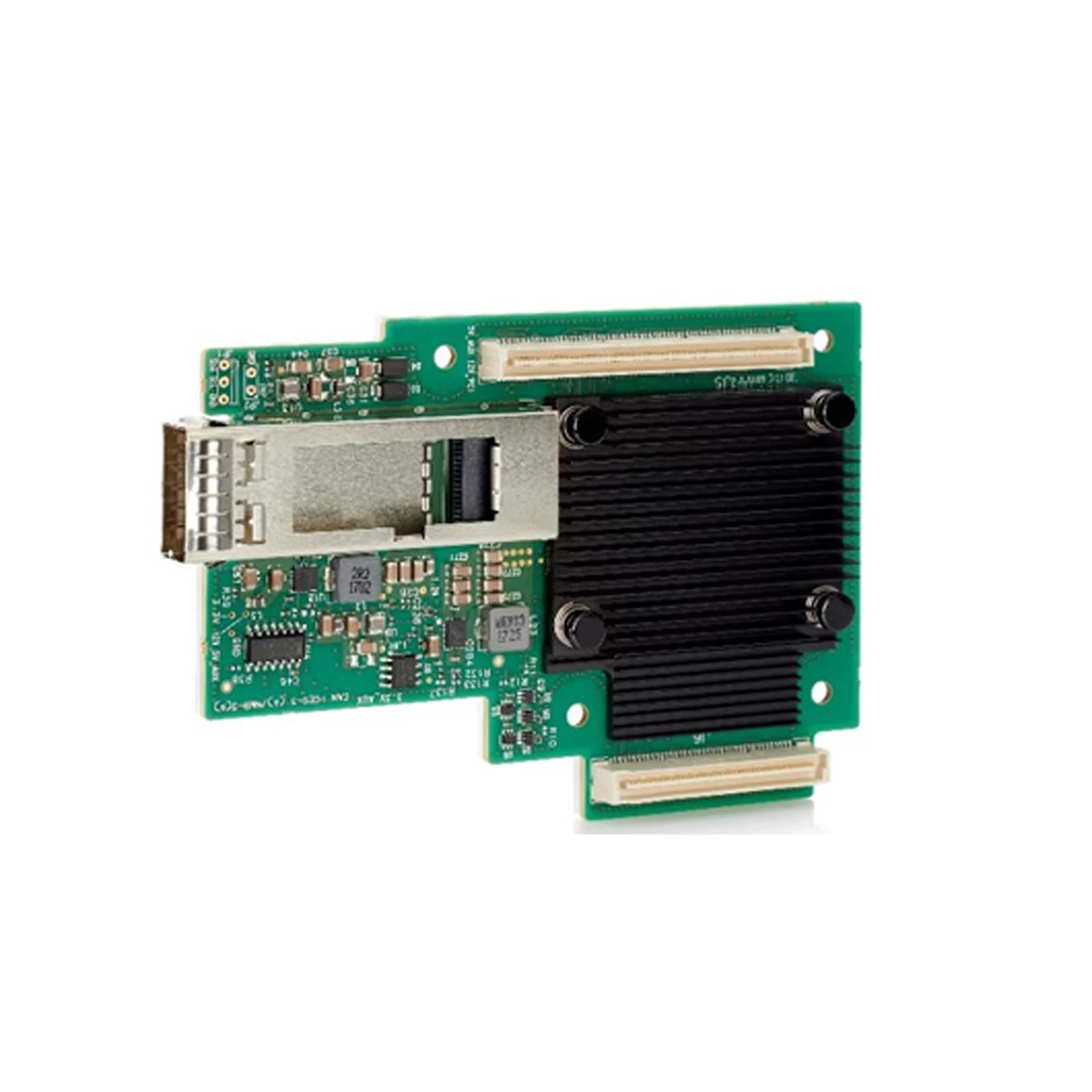

Mellanox MCX546A-BCAN InfiniBand EDR/Ethernet 100Gb 1-Port 841OCP QSFP28 Adapter (HPE OEM)
MCX546A-BCAN
MCX546A-BCAN
MCX546A-BCAN
MCX546A-BCAN
MCX546A-BCAN

Mellanox MCX546A-BCAN InfiniBand EDR/Ethernet 100Gb 1-Port 841OCP QSFP28 Adapter (HPE OEM)

Part Number: MCX546A-BCAN
BRAND: MELLANOX | More NETWORKING from MELLANOX
$350.00
Capacity: 100 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MCX546A-BCAN Infiniband Edr/ethernet 100gb 1-port 841ocp Qsfp28 Adapter

Specifications

Physical

Size 3.07 In. X 4.33 In (78.00mm X 110.05mm)

Connector Dual Qsfp28 Ethernet (copper And Optical)

Protocol Support

Ethernet 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr,10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

Data Rate 1/10/25/40 Gb/s

Pci Express Gen 3.0 Serdes @ 8.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)

Power And Airflow Specifications

Voltage 3.3vaux, 5vaux, 12v

Power

  • Typical Power
    - Passive Cables (15.4w )
    - 1.5w Active Cables (23.2w)

  • Maximum Power
    - Passive Cables (18.1w)
    - 1.5w Active Cables(25.9w).

    Maximum Power Available Through Qsfp28 Port: 3.5w

    Airflow Tested In A Ducted Tunne
  • Passive Cable - 400lfm (heatsink To Port) 400lfm(port To Heatsink).
  • Active 1.5w Cable - Na (heatsink To Port) 1200lfm(port To Heatsink).

    Environmental

    Temperature
  • Operational - (0°c To 55°c)
  • Non-operational - (-40°c To 70°c).

    Humidity
  • Operational- 10% To 85% Relative Humidity
  • Non-operational - 10% To 90% Relative Humidity

    Rohs Rohs Compliant

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
