Detail overview

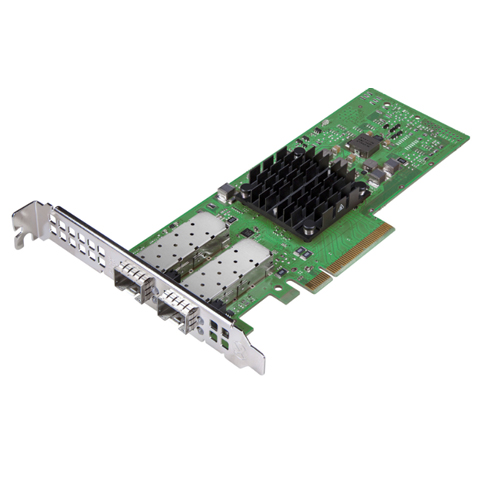

BROADCOM BCM957412A4120AC Dual-port 10 Gb/s Ethernet Pci Express Gen3 X8 Network Interface Card.

Overview The BROADCOM BCM957412A4120AC Is A Dual-port 10 Gb/s, Pci-express Gen3 X8 Network Interface Card That Supports Both Sfp+ Optical Modules And Copper Direct-attach Cable. The Card Uses The BROADCOM Bcm57412 10gbe Mac Controller With The Integrated Dual-channel 10gbe Sfi Transceiver.


• Dual-port Pluggable Media Interface, Which May Be Equipped With 10g Sfp+ Optical Transceiver Or With Copper Direct-attach Cable.

• Fully Compliant To Sff-8402 Standard.

• X8 Pci Express V3.0 Compliant.

• Sr-iov With Up To 128 Vfs.

• Function Level Reset (flr) Support.

• Truflow ™ Flow Processing Engine.

• Virtual Network Termination–vxlan, Nvgre, Gre Encap/decap.

• Vswitch Acceleration.

• Tunnel-aware Stateless Offloads.

• Rdma Over Converged Ethernet (roce).

• Smbus 2.0.

• Mctp Over Smbus.

• Pcie-based Uart And Kcs.

• Jumbo Frames Up To 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, Netqueue, And Vmq.

• Ipv4 And Ipv6 Offloads.

• Tcp, Udp, And Ip Checksum Offloads.

• Large Send Offload (lso).

• Large Receive Offload (lro).

• Tcp Segmentation Offload (tso).

• Receive-side Scaling (rss).
• Transmit-side Scaling (tss).

• Vlan Insertion/removal.

• Interrupt Coalescing.

• Network Boot-pxe, Uefi.

• Iscsi Boot.

• Msi And Msi-x.

• Conforms To The Pci Express Card Electromechanical Specification Rev. 3.0

Applications Dual-port 10-gigabit Ethernet Network Interface Card
for Data Centers Or Cloud Computing.

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
