Detail overview

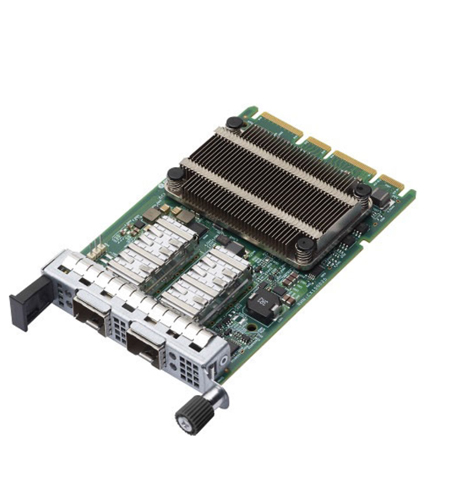

BROADCOM BCM957412N4120C Dual-port 10 Gb/s Ethernet Pci Express 3.0 X8 Ocp 3.0 Small-form-factor Network Adapter.

Overview The BROADCOM BCM957412N4120C Is A Dual-port 10 Gb/s Pci Express 3.0 X8 Network Adapter Designed To The Open Compute Project (ocp) 3.0 Design Specification In Small Form Factor With Two Sfp+ Network Connectors. The
adapter Supports Sfp+ Optical Modules And Copper Direct-attach Cables. The Network Adapter Uses The BROADCOM Bcm57412 25gbe Mac Controller With An Integrated Dual-channel 10gbe Sfi Transceiver.

Features

• Dual-port Pluggable Media Interface, Which Can Connect
to A 10g Sfp+ Optical Transceiver Or A Copper Direct-
attach Cable.

• Fully Compliant With The Sff-8402 Standard.

• X8 Pci Express 3.0 Compliant.

• Sr-iov With Up To 128 Virtual Functions (vfs).

• Function-level Reset (flr) Support.

• Truflow™ Flow Processing Engine.

• Virtual Network Termination–vxlan, Nvgre, Geneve,gre Encap/decap.

• Vswitch Acceleration.

• Tunnel-aware Stateless Offloads.

• Dcb Support – Pfc, Ets, Qcn, Dcbx.

• Rdma Over Converged Ethernet (roce).

• Network Controller Sideband Interface (nc-si).

• Smbus 2.0.

• Mctp Over Smbus.

• Pcie-based Uart And Kcs.

• Jumbo Frames Up To 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, Netqueue, And Vmq.

• Ipv4 And Ipv6 Offloads.

• Tcp, Udp, And Ip Checksum Offloads.

• Large Send Offload (lso).

• Large Receive Offload (lro).

• Tcp Segmentation Offload (tso).

• Receive-side Scaling (rss).

• Transmit-side Scaling (tss).

• Vlan Insertion/removal.

• Interrupt Coalescing.

• Network Boot—pxe, Uefi.

• Iscsi Boot.

• Wake-on-lan (wol).

• Msi And Msi-x.

• Conforms To The Ocp 3.0 Design Specification Version
1.00.

Applications

• Dual-port 10-gigabit Ethernet Adapter For Ocp Systems.

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
