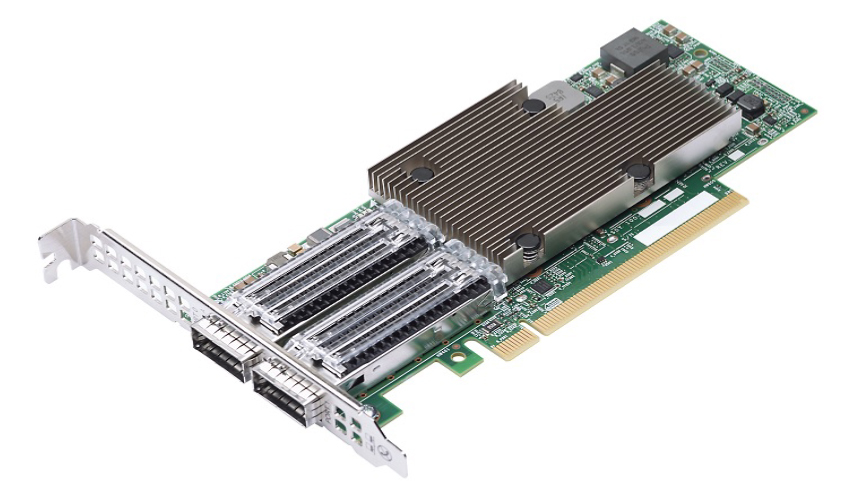

BROADCOM BCM957508-P2100G Dual-port 100 Gb/s Qsfp56 Ethernet Pci Express 4.0 X16 Network Interface Card.

Overview The BROADCOM BCM957508-P2100G Is A Dual-port 100 Gb/s Pci Express 4.0 X16 Network Interface Card That Supports Qsfp56/qsfp28 Optical Modules And Copper Direct-attach Cables. The Card Uses The BROADCOM Bcm57508 200gbe Mac Controller With An Integrated Dual-channel 100gbe Sfi Transceiver.

Features

• Dual-port Pluggable Media Interface Which Is Compatible With A Qsfp56/qsfp28 Optical Transceiver Or A Copper Direct-attach Cable.

• Industrys Most Secure Pcie Adapter Solution Leveraging BROADCOM’S Broadsafe Technology

• Multi-host Support: Dual-host X8 Mode1.

• Fully Compliant With The Sff-8402 Standard.

• X16 Pci Express 4.0 Compliant.

• Sr-iov With Up To 1k Virtual Functions (vfs).

• Function-level Reset (flr) Support.

• Truflow ™ Flow Processing Engine.

• Virtual Network Termination–vxlan, Nvgre, Geneve,

• Gre Encap/decap.

• Vswitch Acceleration.

• Tunnel-aware Stateless Offloads.

• Dcb Support – Pfc, Ets, Qcn, Dcbx.

• Rdma Over Converged Ethernet (roce)

• Network Controller Sideband Interface (nc-si)1.

• Smbus 2.0.

• Mctp Over Smbus.

• Jumbo Frames Up To 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, Netqueue, And Vmq.

• Ipv4 And Ipv6 Offloads.

• Tcp, Udp, And Ip Checksum Offloads.

• Large Send Offload (lso).

• Large Receive Offload (lro).

• Tcp Segmentation Offload (tso).

• Receive-side Scaling (rss).

• Transmit-side Scaling (tss).

• Vlan Insertion/removal.

• Interrupt Coalescing.

• Network Boot—pxe, Uefi.

• Iscsi Boot.

• Msi And Msi-x.

• Fru Support

Applications Dual-port 100-gigabit Qsfp56 Ethernet Network Interface
card For Data Centers Or Cloud Computing.

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
