| Product Overview

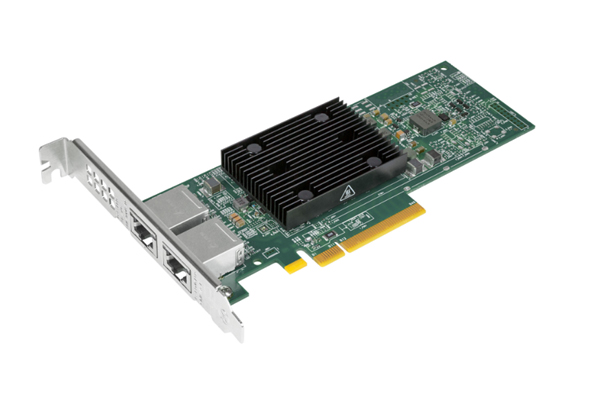

BROADCOM P210TP Dual-port 10gbase-t Ethernet Pci Express 3.0 X8 Network Interface Card.
Overview The BROADCOM Bcm957416a4160c Is A Dual-port 10gbase-t, Pcie 3.0 X8 Network Interface Card That Supports A Dual-port 10gbase-t Media Interface That Is Fully Compliant With The Ieee 802.3an Standard. The Card Uses The BROADCOM Bcm57416 Ethernet Controller With The Integrated Dual-channel 10gbase-t Transceiver.
Features
Dual-port 10-gigabit Ethernet:
– 10gbase-t Ieee 802.3an
– 1000base-t Ieee 802.3ab
X8 Pci Express V3.0 Compliant.
Sr-iov With Up To 128 Vfs.
Function Level Reset (flr) Support.
Truflow™ Flow Processing Engine.
Virtual Network Termination–vxlan, Nvgre, Geneve, Gre Encap/decap.
Vswitch Acceleration.
Tunnel-aware Stateless Offloads.
Dcb Support: Pfc, Ets, Qcn, Dcbx.
Rdma Over Converged Ethernet (roce)
Smbus 2.0.
Mctp Over Smbus.
Pcie-based Uart And Kcs.
Jumbo Frames Up To 9 Kb.
Advanced Congestion Avoidance.
Multiqueue, Netqueue, And Vmq.
Ipv4 And Ipv6 Offloads.
Tcp, Udp, And Ip Checksum Offloads.
Large Send Offload (lso).
Large Receive Offload (lro).
Tcp Segmentation Offload (tso).
Receive-side Scaling (rss).
Transmit-side Scaling (tss).
Vlan Insertion/removal.
Interrupt Coalescing.
Network Boot-pxe, Uefi.
Iscsi Boot.
Msi And Msi-x
Conforms To The Pci Express Card Electromechanical Specification Rev. 3.0.
Applications Dual-port 10gbase-t Ethernet Network Interface Card For Data Centers Or Cloud Computing.
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
