Detail overview

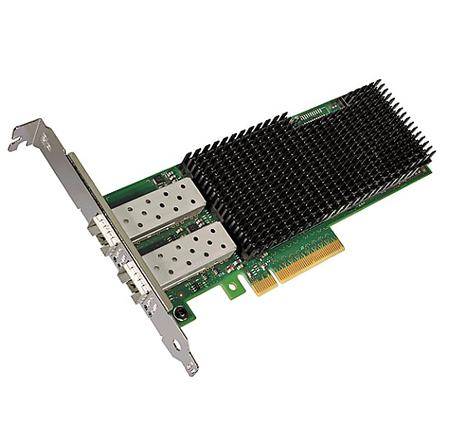

LENOVO 01KR562 Intel Xxv710-da2 2-port 25gb Pcie Sfp28 Ethernet Adapter For Thinksystem.

Overviewthe Thinksystem Intel Xxv710-da2 10/25gbe Sfp28 2-port Pcie Ethernet Adapter Is A Flexible Follow-onto The X710 10gb Adapters And Is Best Suited For Existing 10gb Customers Where They Need To Maintain10gb Network Support Plus Provide The Investment Protection Of Supporting 25gbe Network Speeds. By Providing Unmatched Features For Server And Network Virtualization, Small Packet Performance, And Low Power. The Data Center Network Is Flexible, Scalable, And Resilient.


Key Features

Device Type: Network Adapter

Form Factor: Plug-in Card - Low Profile

Interface (bus) Type: Pci Express 3.0 X8

Ports: 25 Gigabit Sfp28 X 2

Connectivity Technology: Wired

Data Link Protocol: 25 Gigabit Lan

Data Transfer Rate: 25 Gbps

Network / Transport Protocol Tcp/ip, Udp/ip, Iscsi, Smb, Nfs

Remote Management Protocol Snmp, Rmon

Compliant Standardsieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1as, Ieee 802.3az, Ieee 802.1qbg, Ieee 802.1qbh, Ieee 802.3by, Ieee 802.3bd

System Requirements : Linux Kernel 2.6, Microsoft Windows Server 2008 R2 (64-bits), Vmware Vsphere 5.1, Vmware Vsphere 5.5, Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), Suse Linux Enterprise Server 11 Sp4, Suse Linux Enterprise Server 12 Sp1, Ubuntu 16.04 Lts, Linux Kernel 4.x, Vmware Esxi 6.5, Red Hat Enterprise Linux 7.3, Freebsd 10.3, Freebsd 11, Red Hat Enterprise Linux 6.9, Microsoft Windows Server 2016 (64-bit), Ubuntu 14.04.x Lts (64 Bits), Vmware Esxi 6.0 Update 3.

Designed For Thinksystem Sr630 7x01, 7x02, Sr650 7x05, 7x06

Dimensions (wxdxh) 0.6 In X 6.6 In X 2.7 In

Condition : Brand New.
Availability : Call.
Our Warranty : 30 Days.
