Detail overview

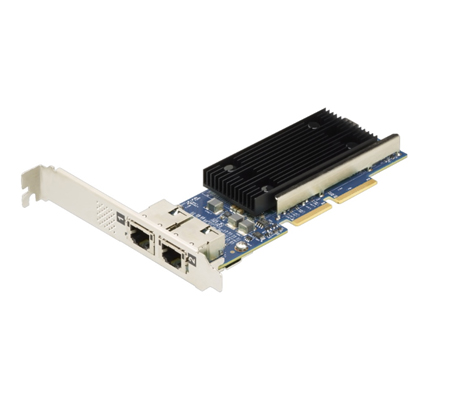

LENOVO 7ZT7A00497 Broadcom 57416 10gbase-t 2-port Ml2 Ethernet Adapter For Think System.


The Adapters Have The Following Specifications:

• Dual-channel 10 Gbps Ethernet Controller
- 10gbase-t Ieee 802.3an Support
- 1000base-t Ieee 802.3ab Support

• Based On The Broadcom Bcm957416a4160c Adapter And Bcm57416 Controller

• Supports Ipv4 And Ipv6

• Broadcom Truflow Flow Processing Engine

• Pci Express 3.0 X8 Host Interface

• Form Factor: Ml2 Form Factor

Virtualization Features

• Sr-iov Support With Up To 128 Vfs

• Vxlan, Nvgre, Geneve, Gre Encapsulation And Decapsulation

• Vswitch Acceleration

• Multiqueue, Netqueue, And Vmq

• Tunnel-aware Stateless Offloads

• Message Signal Interrupts (msi-x) Support

Ethernet And Nic Features:

• Ipv4 And Ipv6 Offloads

• Tcp, Udp, And Ip Checksum Offloads

• Large Send Offload (lso)

• Large Receive Offload (lro)

• Tcp Segmentation Offload (tso)

• Receive-side Scaling (rss)

• Transmit-side Scaling (tss)

• Vlan Insertion/removal

• Interrupt Coalescing

• Jumbo Frames Up To 9 Kb

• Network Boot-pxe, Uefi

• Iscsi Boot

• Data Plan Development Kit (dpdk) Support

Remote Direct Memory Access (rdma):

• Supports Rdma Over Converged Ethernet (roce) Specifications

Data Center Bridging / Converged Enhanced Ethernet (dcb/cee):

• Hardware Offloads Of Ethernet Tcp/ip

• 802.1qbb Priority Flow Control (pfc)

• 802.1 Qaz Enhanced Transmission Selection (ets)

• 802.1 Qaz Data Center Bridging Exchange (dcbx)


• Smbus 2.0

• Mctp Over Smbus

• Nc-si Support (ml2 Adapter Only)

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
