Detail overview

Product Details:

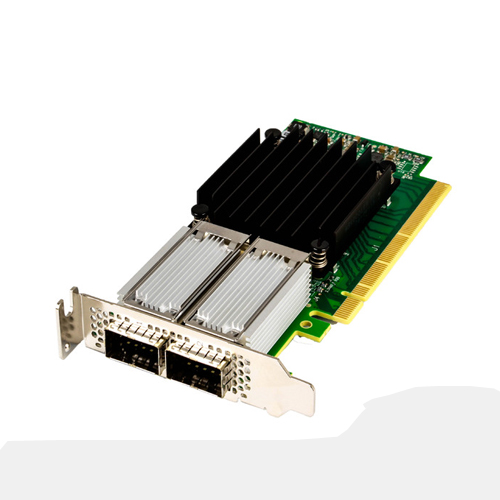

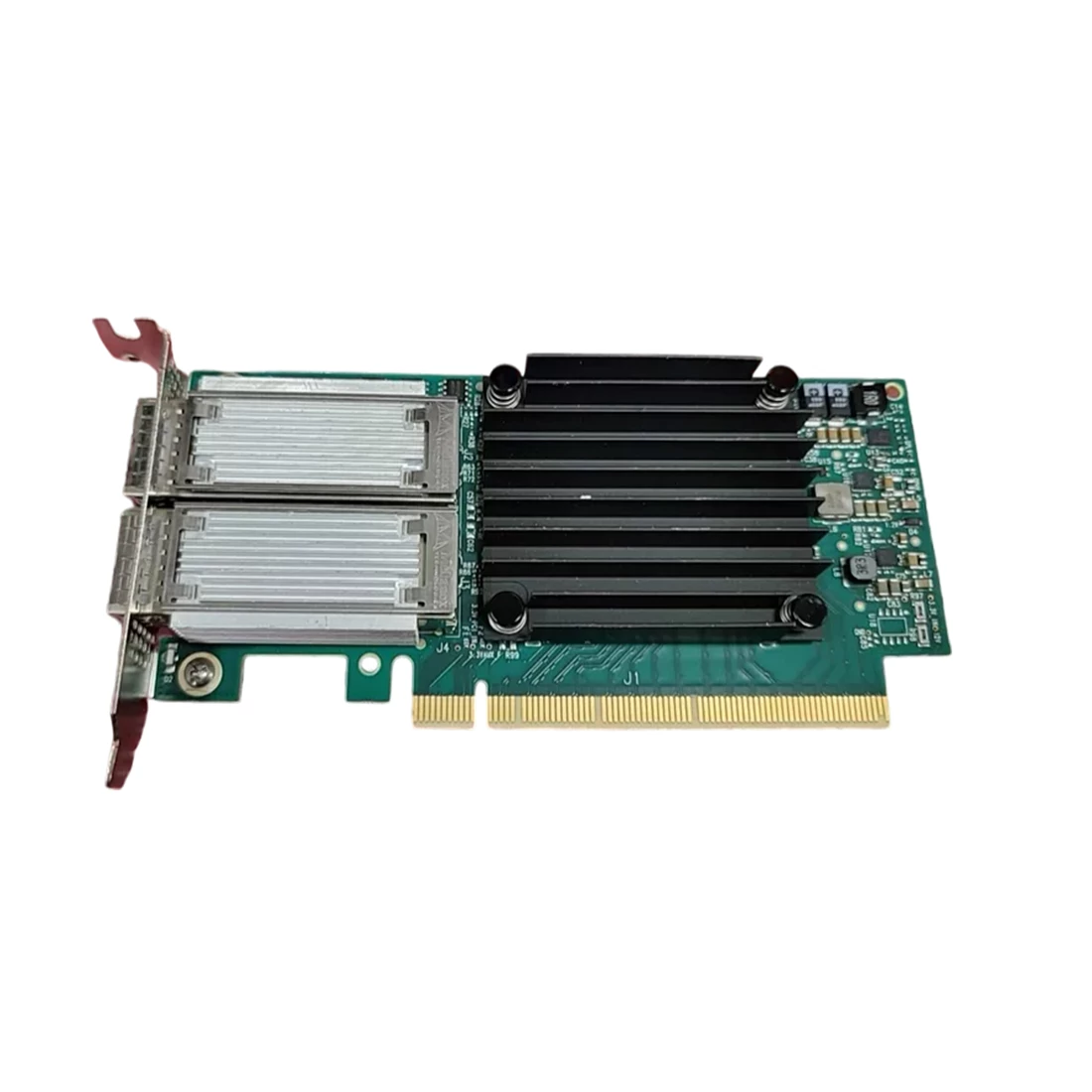

MELLANOX MCX456A-ECAT Connectx-4 Vpi Adapter Card Edr Ib (100gb/s) And 100gbe Dual-port Qsfp28 Pcie3.0 X16 With Both Brackets.

General Information
Brand Name: MELLANOX
Manufacturer: MELLANOX Technologies Ltd
Manufacturer Website Address: HTTP://WWW.MELLANOX.COM
Device Type: network Adapter

Technical Information:

General :
Device Type : network Adapter
Form Factor : plug-in Card
Interface (bus) Type : pci Express 3.0 X16
Pci Specification Revision : pcie 1.1, Pcie 2.0, Pcie 3.0

Networking :
Ports : qsfp+ X 2
Connectivity Technology :wired
Data Link Protocol :infiniband, 100 Gigabit Ethernet
Data Transfer Rate :100 Gbps
Network / Transport Protocol: tcp/ip, Udp/ip, Ipoib

Features: Vlan Support, Virtual Protocol Interconnect (vpi), Quality Of Service (qos), Jumbo Frames Support.

Compliant Standards: Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ibta 1.3, Ieee 802.1qbg, Ieee 1588v2.

Expansion / Connectivity: Interfaces: 2 X Infiniband - Qsfp+

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.

Other Available Condtions for this Part
