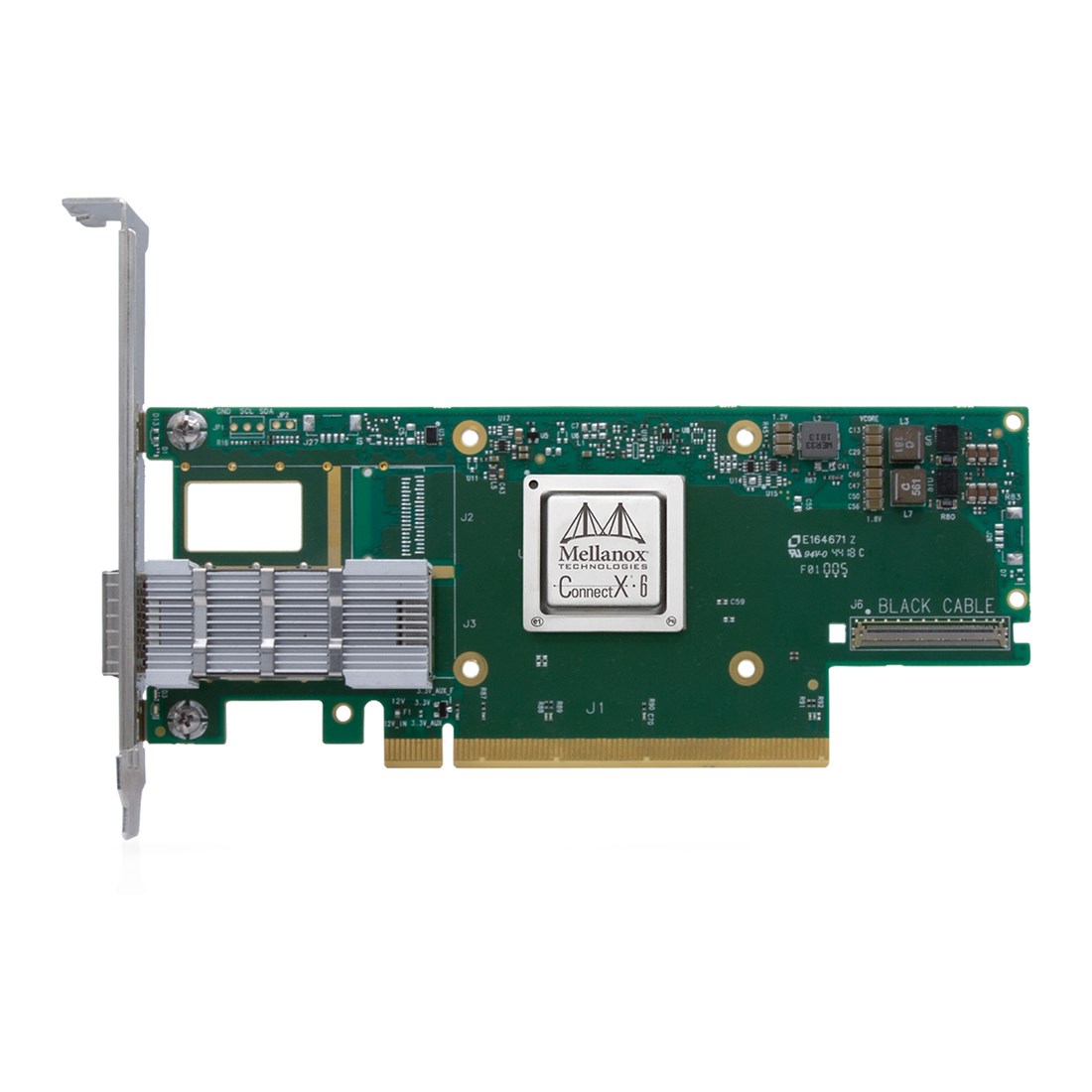

Mellanox MCX653105A-HDAT InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 Adapter Ref

Mellanox MCX653105A-HDAT InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 Adapter Ref

Name: Mellanox MCX653105A-HDAT InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 Adapter Ref
Brand: MELLANOX
SKU: 302512
Price: 790 USD
Availability: InStock
Rating: 4.8 (32286 reviews)

Part Number: MCX653105A-HDAT
BRAND: MELLANOX | More NETWORKING from MELLANOX
$790.00
Capacity: 2 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

MELLANOX MCX653105A-HDAT Connectx6 Infiniband/ethernet Adapter Card Hdr Ib (200gb/s) And 200gbe Single-port Qsfp56 Pcie3.0 X16

Specifications

Physical

Adapter Card Size: 6.6 In. X 2.71 In.

Connector: Single Qsfp56 Infiniband And Ethernet (copper And Optical)

Protocol Support

Infiniband: Ibta V1.4

Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Hdr (50gb/s Per Lane) Port

Ethernet: 200gbase-cr4, 200gbase-kr4, 200gbase-sr4, 100gbase-cr4, 100gbase-cr2, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

Data Rate:

- Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100/hdr

- Ethernet : 1/10/25/40/50/100/200 Gb/s

- Pci Express Gen3/4: Serdes 8.0gt/s/16gt/s, X16 Lanes (2.0 And 1.1 Compatible)

Power And Airflow

- Voltage : 3.3aux

- Maximum Current: 100ma

- Typical Power: Passive Cables 19.3w

- Maximum Power: Please Refer To Connectx-6 Vpi Power Specifications (requires Nvonline Login Credentials)

Maximum Power Available Through Qsfp56 Port: 5w

Airflow (lfm)/ambient Temperature

- Passive Cables: 350 Lfm / 55°c(heatsink To Port) 250 Lfm / 35°c(port To Heatsink)

- Nvidia Active 4.7w Cables: 500 Lfm / 55°c(heatsink To Port) 250 Lfm / 35°c(port To Heatsink).

Environmental

Temperature:
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c

Humidity:
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity

Altitude (operational): 3050m

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
