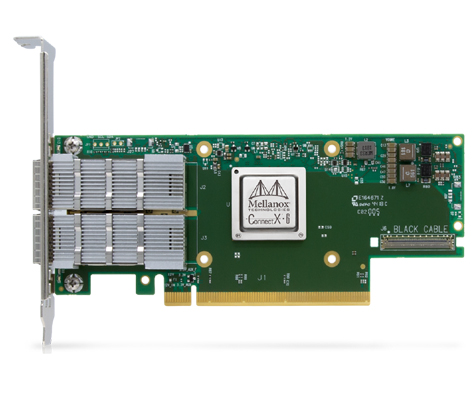

Mellanox MCX653106A-HDAT ConnectX-6 InfiniBand/Ethernet adapter card HDR IB (200Gb/s) and 200GbE dual-port QSFP56 PCIe3.0/4.0 x16 tall bracket Ref

Mellanox MCX653106A-HDAT ConnectX-6 InfiniBand/Ethernet adapter card HDR IB (200Gb/s) and 200GbE dual-port QSFP56 PCIe3.0/4.0 x16 tall bracket Ref

Name: Mellanox MCX653106A-HDAT ConnectX-6 InfiniBand/Ethernet adapter card HDR IB (200Gb/s) and 200GbE dual-port QSFP56 PCIe3.0/4.0 x16 tall bracket Ref
Brand: MELLANOX
SKU: 380430
Price: 1200 USD
Availability: InStock
Rating: 4.8 (32286 reviews)

Part Number: MCX653106A-HDAT
BRAND: MELLANOX | More NETWORKING from MELLANOX
$1,200.00
Capacity: 2 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

MELLANOX Mcx653105a-hdat Connectx6 Infiniband/ethernet Adapter Card Hdr Ib (200gb/s) And 200gbe Single-port Qsfp56 Pcie3.0 X16

Specifications

Physical

Adapter Card Size: 6.6 In. X 2.71 In.

Connector: Dual Qsfp56 Infiniband And Ethernet (copper And Optical)

Protocol Support

Infiniband: Ibta V1.4

Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Hdr (50gb/s Per Lane) Port

Ethernet: 200gbase-cr4, 200gbase-kr4, 200gbase-sr4, 100gbase-cr4, 100gbase-cr2, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

Data Rate:
- Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100/hdr
- Ethernet : 1/10/25/40/50/100/200 Gb/s
- Pci Express Gen3/4: Serdes 8.0gt/s/16gt/s, X16 Lanes (2.0 And 1.1 Compatible)

Power And Airflow
- Voltage : 3.3aux
- Maximum Current: 100ma
- Typical Power: Passive Cables 23.6w
- Maximum Power: Please Refer To Connectx-6 Vpi Power Specifications (requires Nvonline Login Credentials))

Maximum Power Available Through Qsfp56 Port: 5w

Airflow (lfm)/ambient Temperature
- Passive Cables: 350 Lfm / 55°c(heatsink To Port) 250 Lfm / 35°c(port To Heatsink)
- Nvidia Active 4.7w Cables: 400 Lfm / 55°cc(heatsink To Port) 300 Lfm /35°c (port To Heatsink).

Environmental

Temperature:
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c

Humidity:
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity

Altitude (operational): 3050m

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
