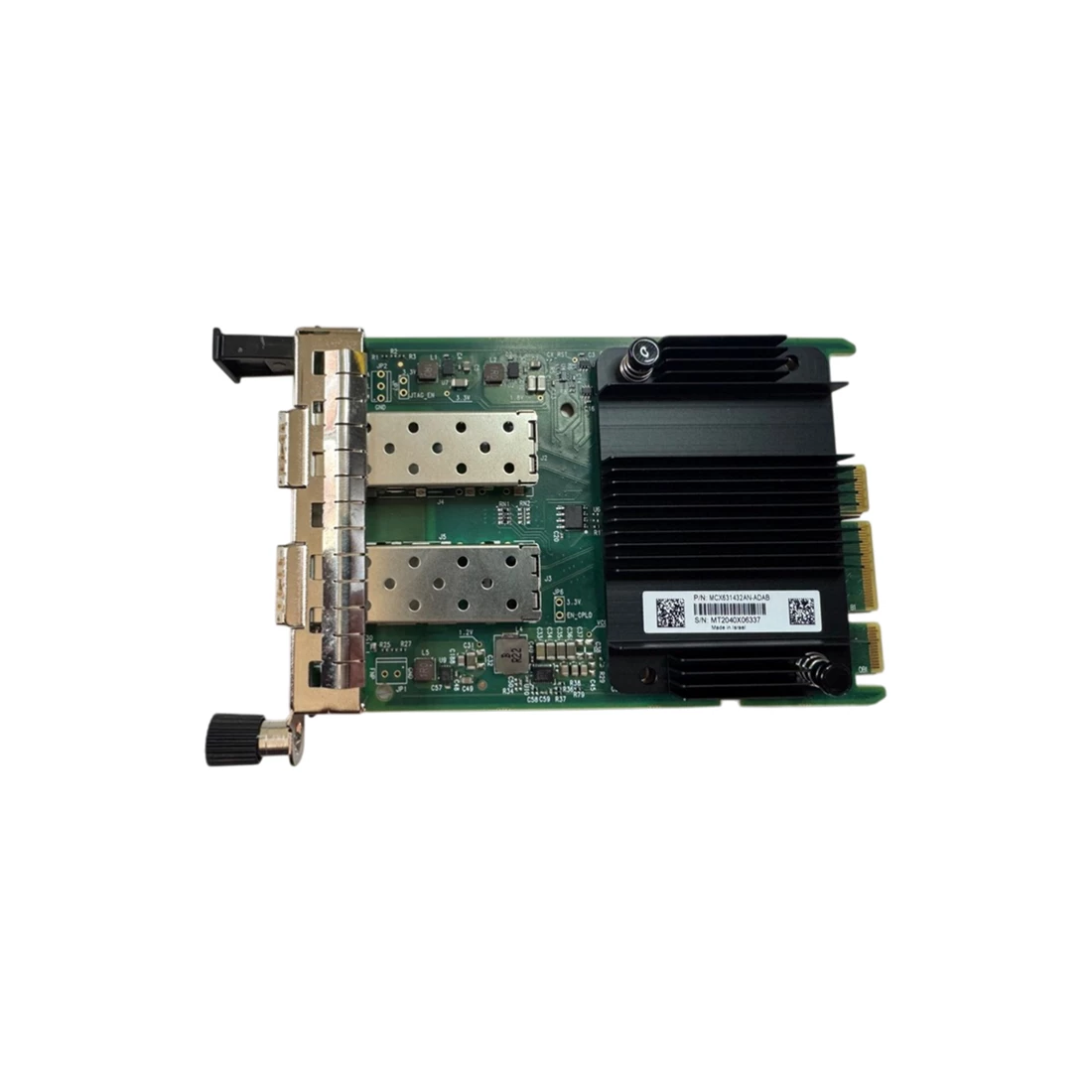

NVIDIA 900-9X625-0053-SB0 ConnectX-6 Lx EN Adapter Card 25GbE OCP3.0 with Host Management Dual-port SFP28 PCIe 4.0 x8 No Crypto Thumbscrew (Pull Tab) Bracket
900-9X625-0053-SB0
900-9X625-0053-SB0
900-9X625-0053-SB0
900-9X625-0053-SB0
900-9X625-0053-SB0

NVIDIA 900-9X625-0053-SB0 ConnectX-6 Lx EN Adapter Card 25GbE OCP3.0 with Host Management Dual-port SFP28 PCIe 4.0 x8 No Crypto Thumbscrew (Pull Tab) Bracket

Part Number: 900-9X625-0053-SB0
BRAND: NVIDIA | More NETWORKING from NVIDIA
$350.00
Capacity: 2 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA 900-9X625-0053-SB0 Connectx-6 Lx En Adapter Card 25gbe Ocp3.0 With Host Management Dual-port Sfp28 Pcie 4.0 X8 No Crypto Thumbscrew (pull Tab) Bracket.

Specifications

Physical

  • Form Factor: Small Form Factor (sff) Ocp 3.0
  • Size: 4.52 In. X 2.99 In (115.00mm X 76.00mm)
  • Connector: Dual Sfp28 Ethernet (copper And Optical)
  • Retention Mechanism: Thumbscrew (pull Tab) Bracket

    Protocol Support
  • Ethernet: 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-kx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
  • Data Rate: Ethernet - 1/10/25 Gb/s
  • Pci Express Gen 4.0: Serdes 16.0gt/s, 8 Lanes (2.0 And 1.1 Compatible)

    Power And Airflow
  • Voltage: 3.3vaux, 12v

  • Typical Power:
    - Cable Type: Passive Cables
    - Active Mode: 11.8w
    - Standby Mode : Tbd

  • Maximum Power:
    - Cable Type: Passive Cables
    - Active Mode: 13.4w
    - Standby Mode : 9.2w

    - Cable Type: 1.5w Active Cables
    - Active Mode: 16.7w
    - Standby Mode : 10.9w

    Maximum Power Available Through Sfp28 Port: 1.5w

    Environmental

  • Temperature
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c(d)

    Humidity
  • Operational: 10% To 85% Relative Humidity
  • Non-operational: 10% To 90% Relative Humidity

    Altitude (operational) 3050m

    Regulatory
  • Safety: Cb/ctuvus/ Ce
  • Emc: Ce / Fcc / Vcci / Ices / Rcm
  • Rohs: Compliant

    Condition: Brand New.
    Availability: Call(eta 1-2 Weeks)
    Our Warranty: 90 Days.
