Detail overview

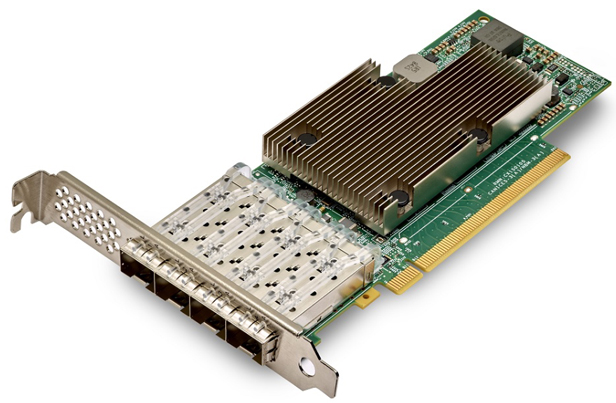

BROADCOM BCM957504-P425G Quad-port 25 Gb/s Sfp28 Ethernet Pci Express 4.0 X16 Network Interface Card.

General Description The BROADCOM BCM957504-P425G Is A Quad-port 25 Gb/s Pci Express 4.0 X16 Network Interface Card That Supports Sfp28/sfp+ Optical Modules And Copper Direct-attach Cables. The Card Uses The BROADCOM Bcm57504
100gbe Mac Controller With An Integrated Quad-channel 25gbe Sfi Transceiver.

Features

• Quad-port Pluggable Media Interface, Which Is Compatible With An Sfp28/sfp+ Optical Transceiver Or A Copper Direct-attach Cable.

• Industry’s Most Secure Pcie Adapter Solution Leveraging BROADCOM’S Broadsafe® Technology.

• Multi-host Support: Dual-host X8 Mode1.

• Fully Compliant With The Sff-8402 Standard.

• X16 Pci Express 4.0 Compliant.

• Sr-iov With Up To 1k Virtual Functions (vfs).

• Function-level Reset (flr) Support.

• Truflow™ Flow Processing Engine.

• Virtual Network Termination – Vxlan, Nvgre, Geneve, Gre Encap/decap.

• Vswitch Acceleration.

• Tunnel-aware Stateless Offloads.

• Dcb Support – Pfc, Ets, Qcn, Dcbx.

• Rdma Over Converged Ethernet (roce)

• Network Controller Sideband Interface (nc-si)1.

• Smbus 2.0.

• Mctp Over Smbus.

• Jumbo Frames Up To 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, Netqueue, And Vmq.

• Ipv4 And Ipv6 Offloads.

• Tcp, Udp, And Ip Checksum Offloads.

• Large Send Offload (lso).

• Large Receive Offload (lro).

• Tcp Segmentation Offload (tso).

• Receive-side Scaling (rss).

• Transmit-side Scaling (tss).

• Vlan Insertion/removal.

• Interrupt Coalescing.

• Network Boot—pxe, Uefi.

• Iscsi Boot.

• Msi And Msi-x.

• Fru Support.

Applications Quad-port 25-gigabit Sfp28 Ethernet Network Interface Card For Data Centers Or Cloud Computing.

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
