| Product Overview

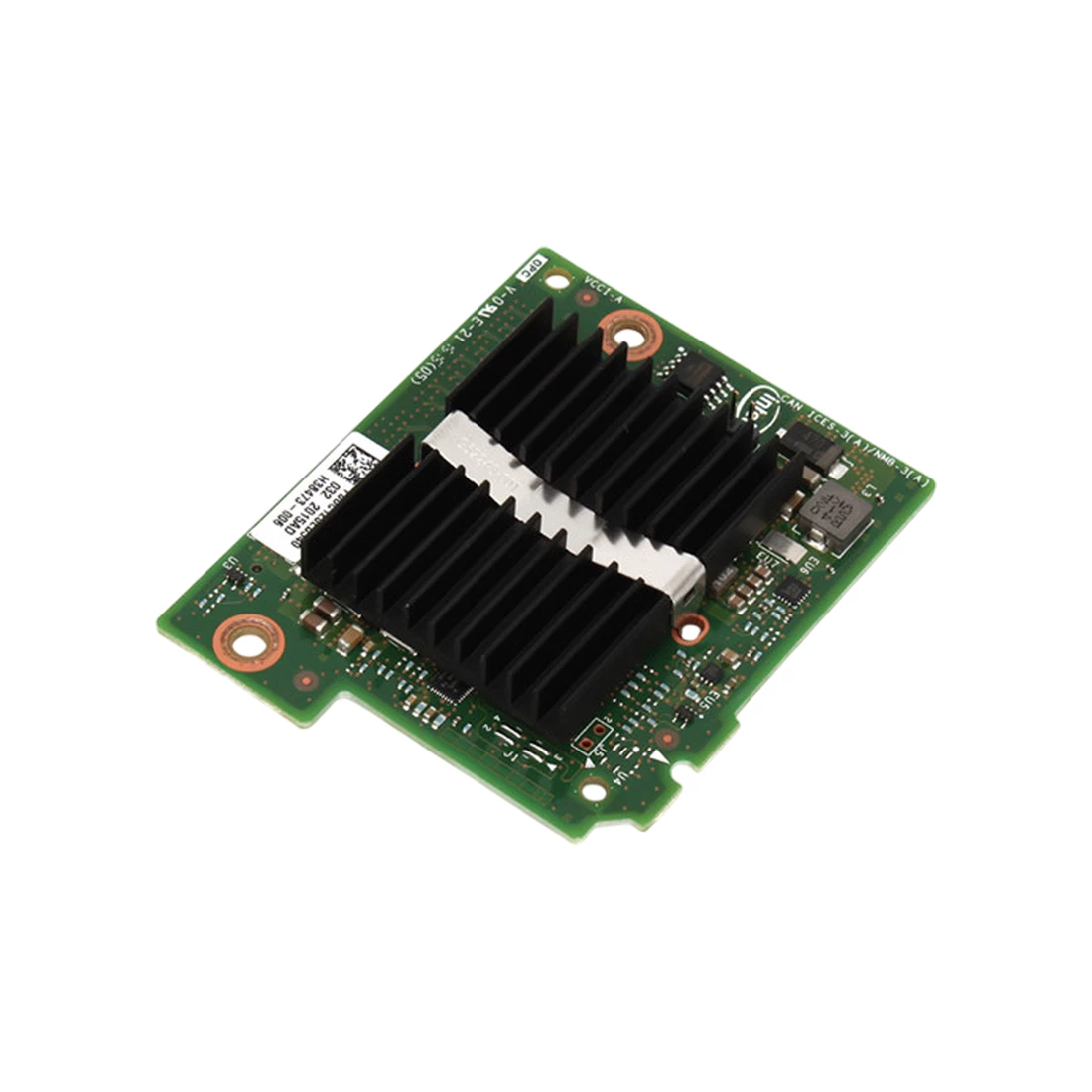

INTEL X710-KR4 Qual-port Ethernet Server Blade Network Daughter Card
Overview
The INTEL Ethernet Server Quad Port Blade Network Daughter Card X710-KR4 Addresses The Demanding Needs Of An Agile Data Center
by Providing Unmatched Features For Both Server And Network Virtualization,flexibilty For Lan And San Networks, And Proven, Reliable Performance. The INTEL Ethernet 700 Series Network Adapters. These Adapters Are The Foundation For Server Connectivity, Providing Broad Interoperability, Critical Performance Optimizations, And Increased Agility For Telecommunications,
cloud, And Enterprise It Network Solutions.
Interoperability - Multiple Speeds And Media Types For Broad Compatibility Backed By Extensive Testing And Validation.
Optimization - INTELLIGENT Offloads And Accelerators To Unlock Network Performance In Servers With INTEL Xeon Processors.
Agility - Both Kernel And Data Plane Development Kit (dpdk) Drivers For Scalable Packet Processing.
Built On More Than 35 Years Of Continuous Ethernet Innovations, The INTEL® Ethernet 700 Series Delivers Networking Performance Across A Wide Range Of Network Port Speeds Through INTELLIGENT Offloads, Sophisticated Packet Processing, And Quality Open Source Drivers.
Key Features
Pci Express (pcie) V3.0, X8
Network Virtualization Offloads Including Vxlan, Geneve, Nvgre, Mpls, And Vxlan-gpe With Network Service Headers (nsh)
INTEL Ethernet Flow Director For Hardware Based Application Traffic Steering
Data Plane Development Kit (dpdk) Optimized For Efficient Packet Processing
Excellent Small Packet Performance For Network Appliances And Network Functions Virtualization (nfv)
INTELLIGENT Offloads To Enable High Performance On Servers With INTEL Xeon Processors
I/o Virtualization Innovations For Maximum Performance In A Virtualized Server
Technical Features
Operating Temperature - 0 °c To 55 °c (32 °f To 131 °f)
Air Flow - 150 Lfm With 55 °c Required For Cr (dac) 150 Lfm With 55 °c Or 500 Lfm With 65 °c Required With Extended Temp Sr Optics
Storage Temperature - -40 °c To 70 °c (-40 °f To 158 °f )
Storage Humidity - Maximum: 90% Non-condensing Relative Humidity At 35 °c
Led Indicators - Link (solid) And Activity (blinking) Link Speed (green = 10gbps, Yellow = 1gbps)
Adapter Features
Data Rate Supported Per Port:
- Optical: 1/10gbe
- Direct Attach: 10gbe
