Detail overview

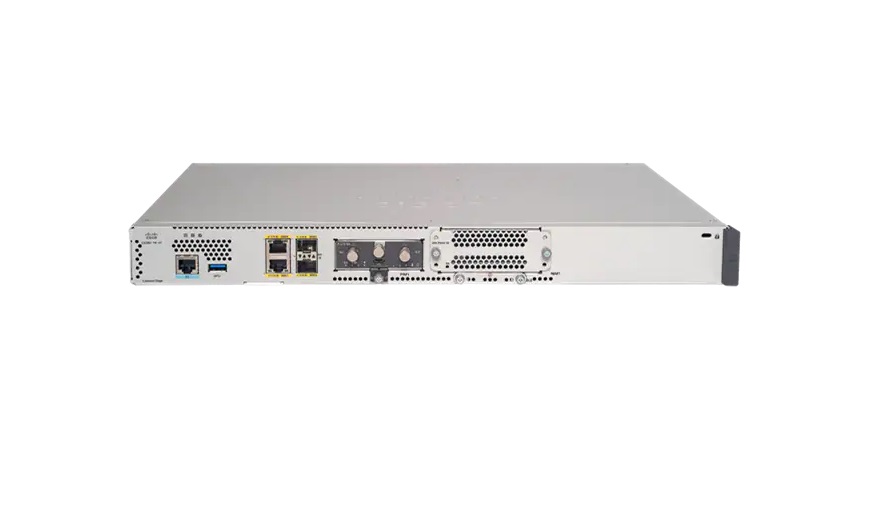

CISCO C8200-1N-4T Router - 4 Ports - 2 - Gigabit Ethernet - 1u - Rack-mountable :

Key Features :

Device Type : Router

Enclosure Type : Rack-mountable - 1u

Connectivity Technology : Wired

Data Link Protocol : Gigabit Ethernet

Performance : Ipsec Throughput (1400bytes, Clear Text): 1 Gbps ¦ Sd-wan Ipsec Throughput (imix, Clear Text): 900 Mbps ¦ Ipv4 Forwarding Throughput (1400-byte Packet Size): 6 Gbps

Capacity : Sd-wan Overlay Tunnels Scale: 4000 ¦ Ipsec Svti Tunnels: 4000 ¦ Access Control Entries (aces) Per System (ipv4): 72000 ¦ Ipv4 Routes: 1600000 ¦ Ipv6 Routes: 1500000 ¦ Queues: 16000 ¦ Nat Sessions: 1200000 ¦ Firewall Sessions: 512000 ¦ Virtual Routing And Forwarding (vrf) Entries: 4000

Network / Transport Protocol : Rsvp, Ntp, Ipsec, Pppoe, Dhcp, Dns, L2tpv3, Rtcp

Routing Protocol : Ospf, Rip, Is-is, Rip-2, Bgp, Eigrp, Hsrp, Dvmrp, Vrrp, Igmpv3, Gre, Ospfv3, Policy-based Routing (pbr), Mpls, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Snmp, Scp, Omp

Encryption Algorithm : Des, Triple Des, Md5, Ike, Tls, Sha-1, Pki, 128-bit Aes, Sha-2, 1024-bit Rsa, 2048-bit Rsa, 256-bit Sha, 256-bit Aes-gcm, 256-bit Aes-cbc, 512-bit Sha, Esp, 748-bit Rsa, 384-bit Sha, Ecdsa 256-bit, Ecdsa 384-bit, Hmac

Authentication Method : Secure Shell (ssh), Radius

Features : Nat Support, Pat Support, Syslog Support, Url Filtering, Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Bidirectional Forwarding Detection (bfd), Dhcp Client, Forward Error Correction (fec), Class Of Service (cos), Call Admission Control (cac), Flexible Netflow (fnf), Application Visibility And Control (avc), Source-specific Multicast (ssm), Authentication, Authorization And Accounting (aaa), Hierarchical Quality Of Service (hqos), Encapsulated Remote Span (erspan), Embedded Event Manager (eem), Protocol Independent Multicast (pim), Ethernet Virtual Connections (evc), CISCO Ios Ip Service-level Agreements (ipsla), Network-based Application Recognition (nbar), Datagram Transport Layer Security (dtls), Point-to-point Protocol (ppp), High-level Data Link Control (hdlc), Multilink Point-to-point Protocol (mlppp), Multilink Frame Relay (mlfr), Application Aware Routing (aar), Interactive Voice Response (ivr), Service Advertisement Framework (saf), Secure Unique Device Identification (sudi)

Compliant Standards : Ieee 802.1q, Ieee 802.3ah, Ieee 802.1ag, En 61000-3-2, Iec 61000-3-2, En55024, En 61000-6-1, As/nzs 60950-1, Ices-003 Class A, Ul 60950-1, Iec 60950-1, En 60950-1, Fda, Fcc Cfr47 Part 15 A, Cns 13438 Class A, En 300 386, Kn35, Iec/en 61000-4-3, Iec/en 61000-4-4, Iec/en 61000-4-5, Iec/en 61000-4-6, Iec/en 61000-4-8, As/nzs Cispr 32 Class A, Kn32 Class A, Iec/en 61000-4-11, Iec/en 61000-4-2, En 55032, Cispr 32 Class A, Vcci-cispr 32:2016 Class A, En 55035, Iec/en 61000-3-3, Iec/en 60825, Can/csa C22.2 No. 60950-1

Processor : Intel

Ram : 8 Gb (installed) / 32 Gb (max)

Flash Memory : 8 Gb

Hard Drive : 16 Gb

Ip Telephony :

Voip Protocols : Srtp

Expansion / Connectivity :

Interfaces : Wan: 4 X Ethernet 1000

Expansion Slots : 1 (total) / 1 (free) X Nim ¦ 1 (total) / 1 (free) X Pluggable Interface Module (pim)

Installed Modules Qty (max) : 0 (installed) / 2 (max)

Power :

Power Device : Internal Power Supply - 100 Watt

Installed Qty : 1 (max)

Voltage Required : Ac 120/230 V (50/60 Hz)

Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 30 Days
