Detail overview

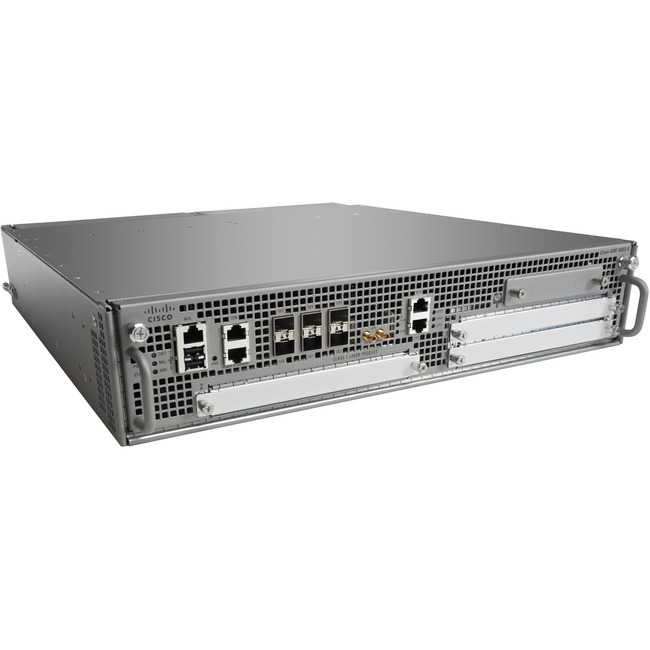

CISCO ASR1002-HX - Router - Rack-mountable :

Key Features :

Device Type : Router

Enclosure Type : Front To Back Airflow Rack-mountable - Modular - 2u

Connectivity Technology : Wired

Data Link Protocol : 10 Gigabit Ethernet

Performance : Esp Bandwidth: 100 Gbps ¦ Encryption Throughput: Up To 25 Gbps

Capacity : Ipsec Tunnels: 8000

Network / Transport Protocol : Ipsec

Features : Nat Support, Deep Packet Inspection (dpi), Access Control List (acl) Support, Quality Of Service (qos), Netflow, Diffserv Code Point (dscp) Support, In-service Software Upgrade (issu)

Compliant Standards : Cispr 22 Class A, Cispr 24, En 61000-3-2, En55022, Iec 61000-4-11, Iec 61000-4-2, Iec 61000-4-3, Iec 61000-4-4, Iec 61000-4-5, Iec 61000-4-6, Iec 61000-4-8, En 61000-3-3, En55024, En55022 Class A, Cispr 22, En50082-1, En 61000-6-1, As/nzs 60950-1, En 61000-4-4, En 61000-4-2, En 61000-4-3, En 61000-4-6, Ices-003 Class A, En 61000-4-5, En 61000-4-11, En 61000-4-8, Ul 60950-1, Iec 60950-1, En 60950-1, Csa C22.2 No. 60950-1-03, Vcci Class A, As/nzs Cispr 22, Fcc Cfr47 Part 15 A, Cns 13438 Class A, En 300 386

Ram : 16 Gb (installed) / 16 Gb (max)

Status Indicators : Power, Active, Standby, Status

Expansion / Connectivity :
Interfaces :

8 X 1000base-x - Sfp (mini-gbic)

8 X 10gbase-x - Sfp+

Management:

1 X 10base-t/100base-tx/1000base-t - Rj-45

Management: 1 X Console - Rj-45

Management: 1 X Auxiliary - Rj-45

Usb:

2 X 4 Pin Usb Type A

Usb: 1 X Console

Expansion Slots :

1 (total) / 1 (free) X Expansion Slot

Installed Modules Qty (max) : 0 (installed) / 1 (max)

Power :

Power Device : Internal Power Supply - Hot-plug - 500 Watt

Power Redundancy : Yes

Installed Qty : 2 (installed) / 2 (max)

Condition : Refurbished
Availability : In Stock.
Our Warranty : 30 Days.
