Detail overview

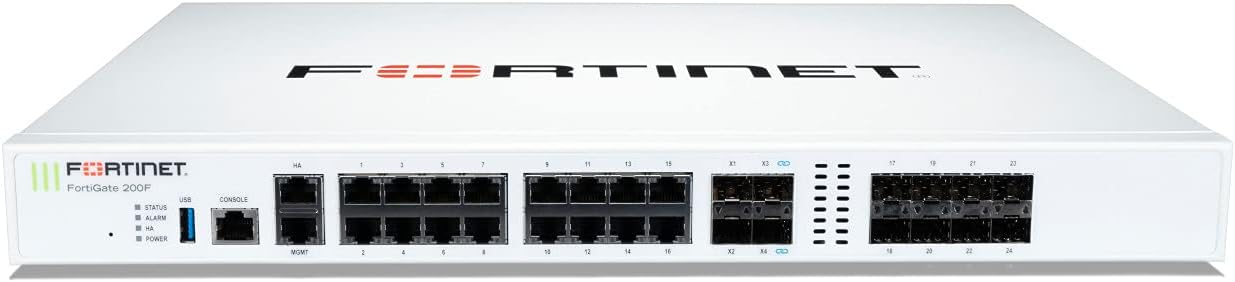

FORTINET FG-200F-BDL-950-12 Fortigate 200f - Security Appliance - Gige - 1u - Rack-mountable:

Key Features :

Device Type: Security Appliance

Processor / Memory / Storage :

Processors Installed : FORTINET Fortiasic Cp9/np6xlite

Networking :

Form Factor : Rack-mountable

Connectivity Technology : Wired

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol : Tcp/ip, Udp/ip, Ipsec, Http, Https

Performance : Ips Throughput: 5 Gbps Ngfw Throughput: 3.5 Gbps Threat Protection Throughput: 3 Gbps Firewall Throughput (1518-byte Udp): 27 Gbps Firewall Throughput (512-byte Udp): 27 Gbps Firewall Throughput (64-byte Udp): 11 Gbps Firewall Latency (64-byte Udp): 4.78 Firewall Throughput: 16.5 Mpps Vpn Throughput (512-bit Ipsec): 13 Gbps Vpn Throughput (ssl): 2 Gbps Ssl Inspection Throughput: 4 Gbps Application Control Throughput: 13 Gbps Capwap Throughput: 20 Gbps

Capacity : Concurrent Tcp Sessions: 3000000 New Tcp Sessions Per Second: 280000 Firewall Policies: 10000 Gateway To Gateway Ipsec Vpn Tunnels: 2500 Client To Gateway Ipsec Vpn Tunnels: 16000 Concurrent Ssl Vpn Users: 500 Ssl Inspection Cps: 3500 Ssl Inspection Concurrent Sessions: 300000 Virtual Domains: 10 Maximum Virtual Domains: 10 Number Of Fortiswitches: 64 Number Of Fortiap Devices: 256 Number Of Fortiap Devices (tunnel): 128 Number Of Fortitoken Devices: 5000

Features : Vpn Support, Trusted Platform Module (tpm), Sd-wan Support

Encryption Algorithm : Ssl, Tls 1.3

Expansion / Connectivity :
Interfaces

2 X 10gbase-x - Sfp+

16 X 1000base-t - Rj-45

1 X Console - Rj-45

1 X Usb 3.0 - Type A

8 X 1000base-x - Sfp (mini-gbic)

1 X 1000base-t (management) - Rj-45

1 X 1000base-t (ha) - Rj-45

2 X Fortilink - Sfp+


Power :

Power Device : Internal Power Supply

Installed Qty : 2

Power Redundancy: Optional

Voltage Required : Ac 120/230 V (50/60 Hz)

Power Consumption Operational : 101.92 Watt

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
