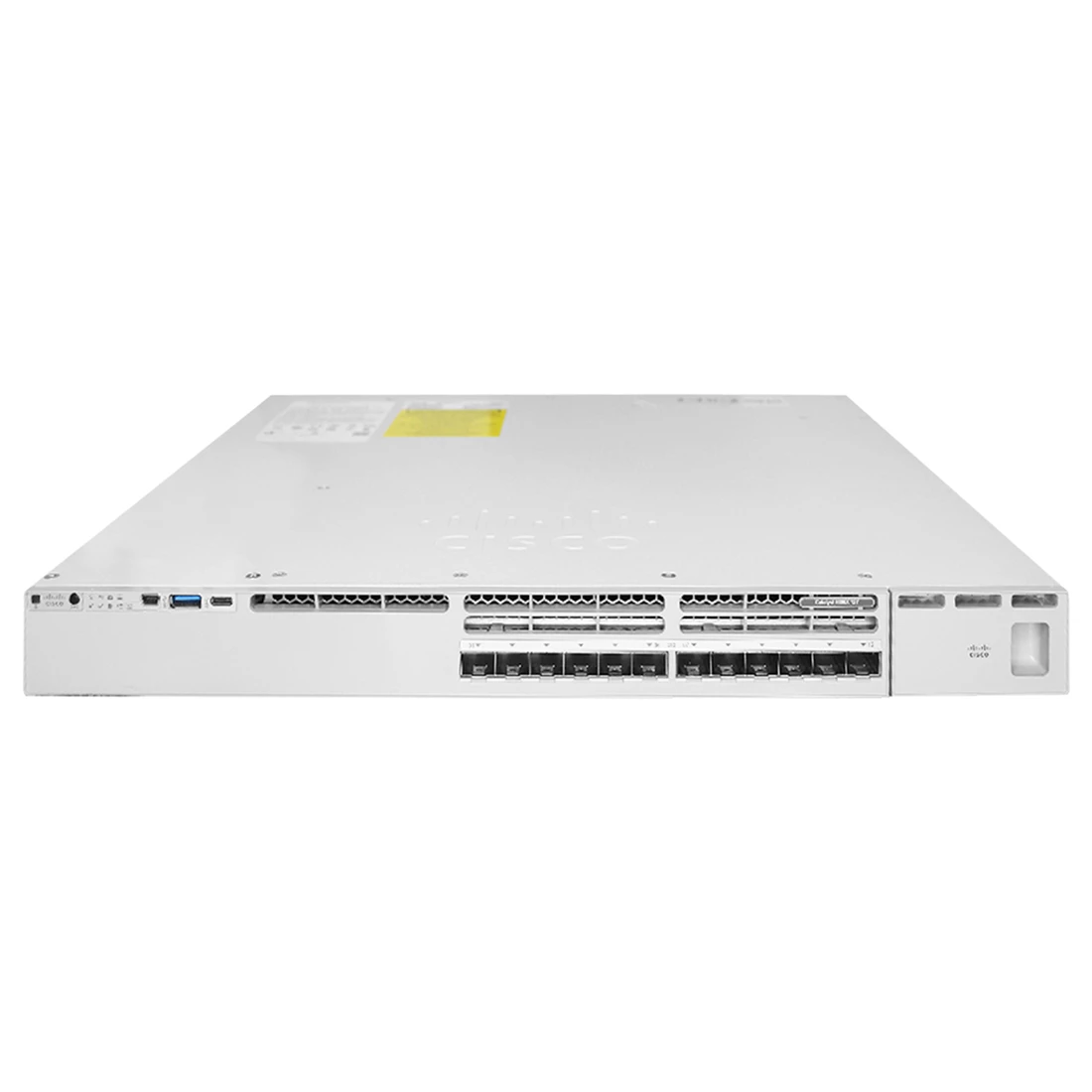

Cisco C9300X-12Y-A Catalyst 9300 Series 12 Port Switch
C9300X-12Y-A
C9300X-12Y-A
C9300X-12Y-A
C9300X-12Y-A

Cisco C9300X-12Y-A Catalyst 9300 Series 12 Port Switch

Part Number: C9300X-12Y-A
BRAND: CISCO | More NETWORKING from CISCO
$8,525.00
Capacity: 12 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

CISCO C9300X-12Y-A Catalyst 9300x - Network Advantage - Switch - L3 - Managed - 12 X 1/10/25 Gigabit Sfp28 - Rack-mountable.

Key Features :

  • Device Type : Switch - 12 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 25 Gigabit Ethernet
  • Ports : 12 X 1/10/25 Gigabit Sfp28
  • Performance : Switching Capacity: 1000 Gbps ¦ Switching Capacity With Stacking: 2000 Gbps ¦ Forwarding Rate: 744.04 Mpps ¦ Forwarding Rate With Stacking: 1488 Mpps
  • Capacity : Ipv4 Routing Table Entries: 39000 ¦ Flexible Netflow Entries: 64000 ¦ Direct Ipv4 Routes: 24000 ¦ Indirect Ipv4 Routes: 15000 ¦ Ipv6 Routing Table Entries: 19500 ¦ Vlan Ids: 4094 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Multicast Routing Flow Table: 8000 ¦ Qos Scale Entries: 4000 ¦ Acl Scale Entries: 5000 ¦ Pvst Instances: 300 ¦ Stp Virtual Ports For Pvst: 13000 ¦ Stp Virtual Ports For Mst: 13000 ¦ Routed Ports: 448
  • Mac Address Table Size : 32000 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Ospf, Is-is, Rip-1, Rip-2, Igmp, Vrrp, Pim-sm, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf
  • Features : Dhcp Support, Trunking, Syslog Support, Full Duplex Mode, Stateful Switchover (sso), Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Quality Of Service (qos), Non-stop Routing (nsr), Remote Switch Port Analyzer (rspan), Management Information Base (mib), CISCO Stackwise-480 Technology, CISCO Stackpower Technology, Flexible Netflow (fnf), Multicast Source Discovery Protocol (msdp), 802.1x Authentication, 16mb Packet Buffer, Ftp Client, Macsec Support, 3 Fans, Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Application Visibility And Control (avc), Source-specific Multicast (ssm), Integrated Wireshark, Vlan Double Tagging (q-in-q), Ethernet Over Mpls (eompls), Hierarchical Virtual Private Lan Service (h-vpls), Private Vlan, Layer 3 Vpn (l3vpn) Support, Encapsulated Remote Span (erspan), Security Group Tag (sgt) Caching, Security Group Access Control List (sgacl), It Service Management (itsm) Integration, Third-party Ip Address Management (ipam) Integration, CISCO Stackwise-1t Technology
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at
  • Ram : 16 Gb
  • Flash Memory : 16 Gb
  • Status Indicators : Status

    Expansion / Connectivity :
  • Interfaces : 24 X 1/10/25gbase-x Sfp28

    Power :
  • Power Device : Internal Power Supply
  • Power Provided : 715 Watt
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    Condition: New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
