Detail overview

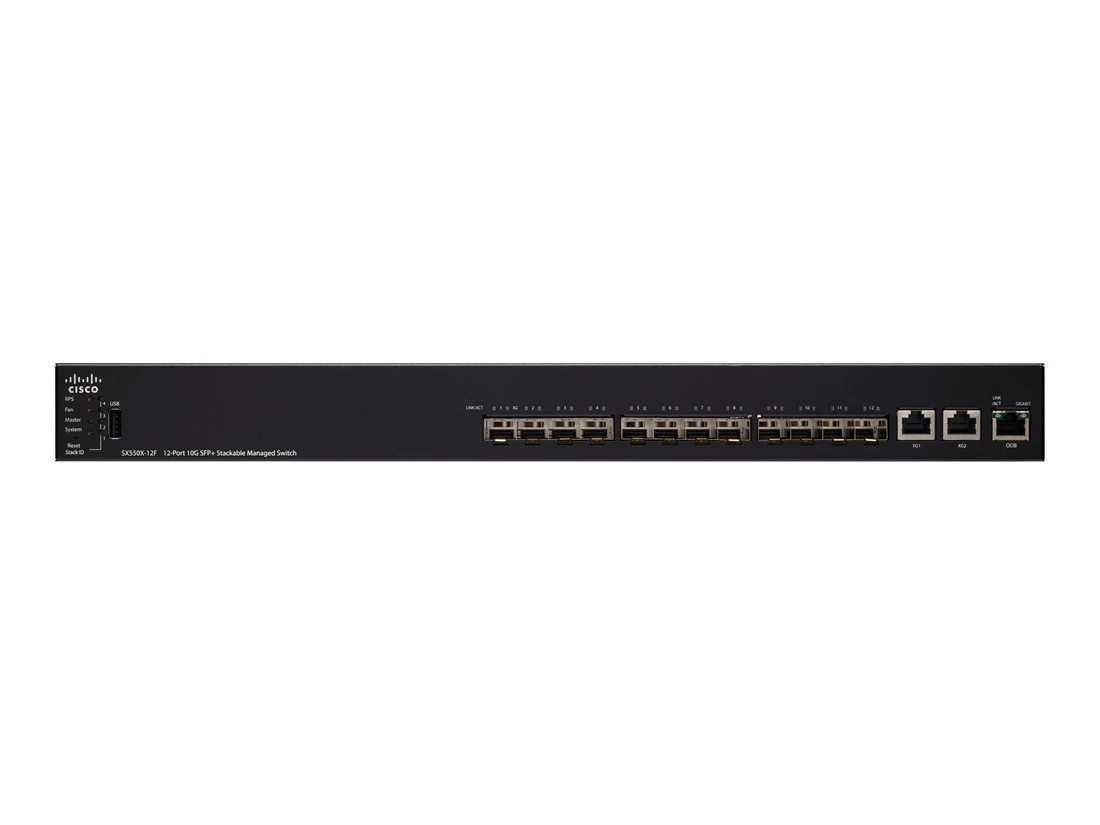

CISCO SX550X-12F-K9 550x Series Sx550x-12f - Switch - 12 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 12 Ports - L3 - Managed - Stackable

Enclosure Type : Desktop, Rack-mountable 1u

Subtype : 10 Gigabit Ethernet

Ports : 12 X 10 Gigabit Sfp+ + 2 X Combo 10 Gigabit Sfp+

Performance : Forwarding Performance (64-byte Packet Size): 178.56 Mpps Switching Capacity: 240 Gbps

Capacity : Vlans Supported: 4094 Ipv4 Routes (static): 7168 Ipv6 Routes (static): 1792 Acl Rules: 2000 Qos Hardware Queues: 8

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9000 Bytes

Max Units In A Stack : 8

Routing Protocol : Rip-2, Igmpv2, Igmp, Igmpv3, Policy-based Routing (pbr), Mldv2, Mld, Vrrpv2, Vrrpv3, Cidr

Remote Management Protocol : Snmp 1, Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Ssh-2, Cli, Scp

Encryption Algorithm : Ssl

Authentication Method : Radius, Tacacs, Tacacs+

Features : Flow Control, Dhcp Support, Igmp Snooping, Syslog Support, Dos Attack Prevention, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, High Availability, Multicast Storm Control, Unicast Storm Control, Firmware Upgradable, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Dynamic Arp Inspection (dai), Reset Button, Stp Root Guard, Uni-directional Link Detection (udld), Dhcp Relay, Remote Switch Port Analyzer (rspan), Dhcp Client, Management Information Base (mib), Dual Firmware Images, Class Of Service (cos), Generic Attribute Registration Protocol (garp), Generic Vlan Registration Protocol (gvrp), Duplicated Address Detection, Diffserv Code Point (dscp) Support, Time-controlled Acls Support, Storm Control, Ip Source Guard, Arp Inspection, Internet Control Message Protocol (icmp), CISCO Discovery Protocol, Igmp Querier, Vlan Double Tagging (q-in-q), Vlan Mirroring, Dns Client, Voice Vlan, Secure Core Technology (sct), Lldp-med, Head-of-line (hol) Blocking, Ip/mac/port Binding (ipmb), Secure Sensitive Data (ssd), Private Vlan, Isatap Tunnel Support, Ra Guard, Guest Vlan, Stp Bpdu Guard

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3an, Ieee 802.3az

Processor : X Arm: 1.3 Ghz

Ram : 512 Mb

Flash Memory : 256 Mb

Status Indicators : Port Transmission Speed, System, Rps (redundant Power Supply), Link/activity, Fan

Expansion / Connectivity :
Interfaces

10 X 10gbase-t Sfp+

2 X 10gbase-t Rj-45

2 X 10gbase-x Sfp+

1 X Console Rj-45

1 X Usb Type A

1 X Management (gigabit Lan)

Power :

Power Device : Internal Power Supply

Voltage Required : Ac 120/230 V (50/60 Hz)

Features : Redundant Power System (rps) Connector

Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 30 Days
