Detail overview

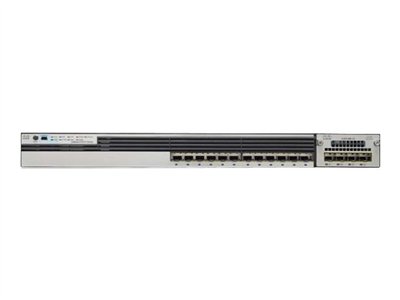

CISCO - Catalyst 3750x-12s-e Managed L3 Switch - 12 Gigabit Sfp Ports (WS-C3750X-12S-E).

Key Features :

Device Type : Switch - 12 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable - 1u

Interfaces : Gigabit Ethernet

Ports : 12 X Gigabit Sfp

Performance :
Switching Capacity : 160 Gbps
Forwarding Performance : 35.7 Mpps

Capacity :
Virtual Interfaces (vlans) : 1005
Switched Virtual Interfaces (svis) : 1000

Jumbo Frame Support : 9216

Routing Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Pim-sm, Pim-dm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Static Ipv4 Routing, Static Ipv6 Routing, Policy-based Routing (pbr), Ripng

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli

Features : Hot Swap Module Replacement, Layer 2 Switching, Dynamic Ip Address Assignment , Dhcp Support, Auto-negotiation, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Traffic Shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Dhcp Snooping, Dynamic Trunking Protocol (dtp) Support, Port Aggregation Protocol (pagp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Virtual Route Forwarding-lite (vrf-lite), Mld Snooping, Dynamic Arp Inspection (dai), CISCO Stackwise Technology, Per-vlan Spanning Tree Plus (pvst+), Uni-directional Link Detection (udld), Shaped Round Robin (srr), Link Aggregation Control Protocol (lacp), Remote Switch Port Analyzer (rspan)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s

Power : Ac 120/230 V ( 50/60 Hz )

Condition : New Factory Sealed.
availability : In Stock.
our Warranty : 30 Days.
