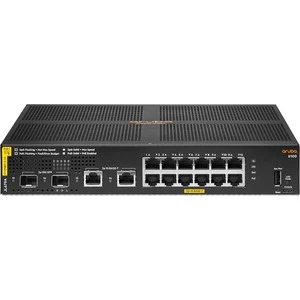

HPE JL679A Aruba 6100 12g Class4 Poe 2g/2sfp+ 139w Switch - Switch - 16 Ports - Managed - Rack-mountable.
General Information:
Device Type : Switch - 16 Ports - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 12 X 10/100/1000 (poe+) + 2 X 1 Gigabit / 10 Gigabit Sfp+ + 2 X 1000base-t
Power Over Ethernet (poe) : Poe+
Poe Budget : 139 W
Performance : Switching Capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 Μs ¦ Latency (10 Gbps): 2.6 Μs
Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Fanless, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity
Interfaces :
12 X 10/100/1000 Base-t Rj-45
2 X 1/10gbit Lan Sfp+
1 X Usb-c Console
1 X Usb Type A
2 X Gigabit Lan
Power
Power Device : Internal Power Supply
Power Provided : 165 Watt 0.9 A
Voltage Required : Ac 230 V (50/60 Hz)
Power Consumption Operational : 16 Watt
Condition : New Retail Factory Sealed
Availability : In Stock
Mfg Warranty : Limited Lifetime
Our Warranty : 30 Days
