Detail overview

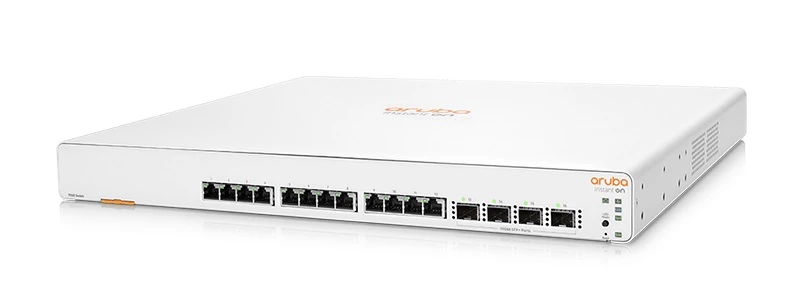

Hpe Jl805a Aruba Instant On 1960 12xgt 4sfp+ Switch 12 Ports Smart Rack-mountable.

Key Features :

  • Device Type : Switch - 12 Ports - L2+ - Smart - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 12 X 100/1000/10000 + 4 X 10 Gigabit Sfp+
  • Performance : Latency (100 Mbps): 7.4 , Latency (1 Gbps): 4.2 , Latency (10 Gbps): 1.1 , Throughput: 238 Mpps, Switching Capacity: 320 Gbps
  • Capacity : Ipv4 Routing Table Entries: 512 : Ipv6 Routing Table Entries: 512
  • Mac Address Table Size : 16000 Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Mldv2, Mld
  • Remote Management Protocol : Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Scp, Radius
  • Features : Flow Control, Auto-negotiation, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Dos Attack Prevention, Port Mirroring, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Firmware Upgradable, Sntp Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Mld Snooping, Trusted Platform Module (tpm), Cable Diagnostics Function, Dhcp Relay, Port Security, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Class Of Service (cos), Cloud Managed, Ip Source Guard, Internet Control Message Protocol (icmp), Dual Image Support, Dns Client, Lldp-med, Ingress Rate Limiting, Protected Ports, Bpdu Filter, Weighted Round Robin (wrr), Arp Filtering, Dscp Prioritization, Auto Voice Vlan, Loop Protection.
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1t, Ieee 802.1ab (lldp), Ieee

    Expansion / Connectivity :
    Interfaces
  • 12 X 10gbit Lan Rj-45
  • 4 X 10gbit Lan Sfp+

    Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-240 V (50/60 Hz)
  • Power Consumption Operational : 80 Watt

    Condition : New Retail Factory Sealed.
    Availability : In Stock.
    Manufacturer Warranty : Limited Lifetime
    Our Warranty : 30 Days.
