Detail overview

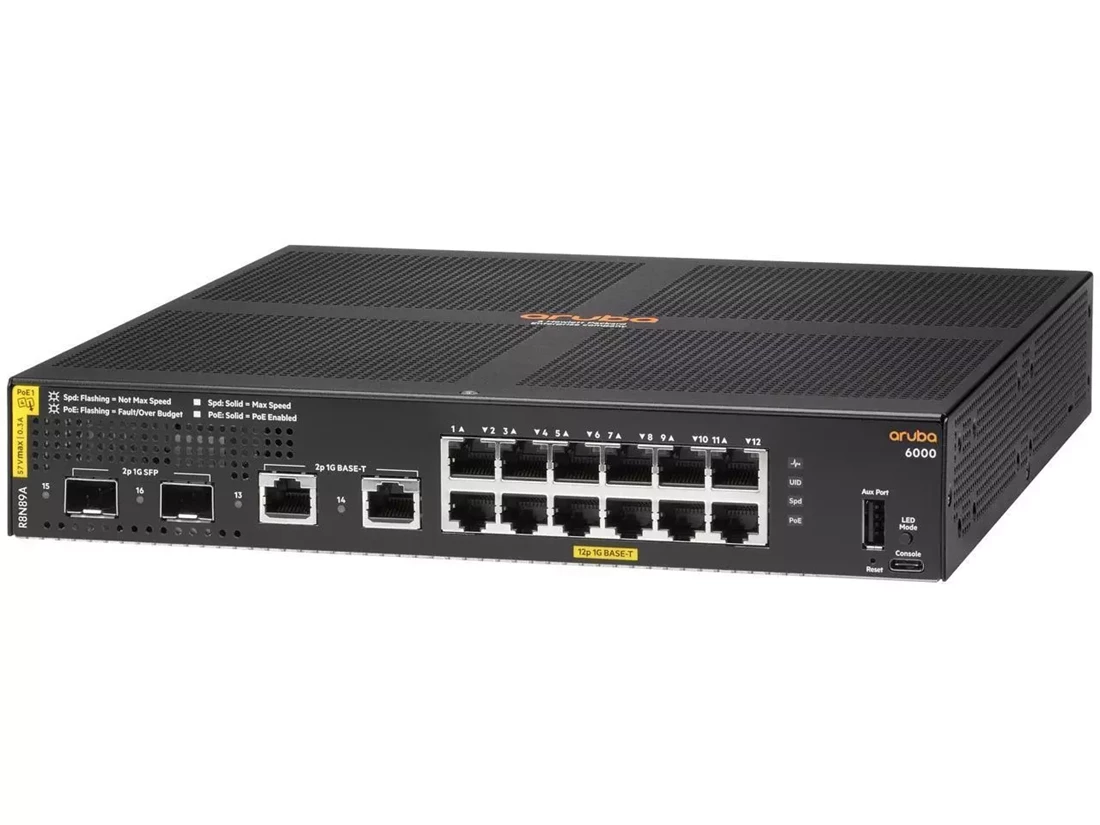

HPE R8N89A Aruba 6000 12g Class4 Poe 2g/2sfp 139w Switch - Switch - 12 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 12 Ports - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp + 2 X 1000base-t

Power Over Ethernet (poe) : Poe

Poe Budget : 139 W

Performance : Packet Buffer Size: 12.38 Mb ¦ Throughput: 23.8 Mpps ¦ Switching Capacity: 32 Gbps ¦ Latency (1 Gbps): 2.3 Μs ¦ Latency (10 Gbps): 2.6 Μs

Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256

Mac Address Table Size : 8192 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Igmpv2, Igmpv3

Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius

Encryption Algorithm : Ssl

Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing

Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az

Processor : 1 X Arm A9: 1.016 Ghz

Ram : 4 Gb Ddr3 Sdram

Flash Memory : 16 Gb

Expansion / Connectivity :
Interfaces :
12 X 10/100/1000 Base-t Rj-45 Poe Class 4 - 139 W ¦ 2 X 10gbit Lan Sfp ¦ 2 X Gigabit Lan ¦ 1 X Usb Type A ¦ 1 X Usb-c Console

Power :

Power Device : Internal Power Supply

Voltage Required : Ac 100-240 V (50/60 Hz)

Power Consumption Operational : 21.9 Watt

Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
