Detail overview

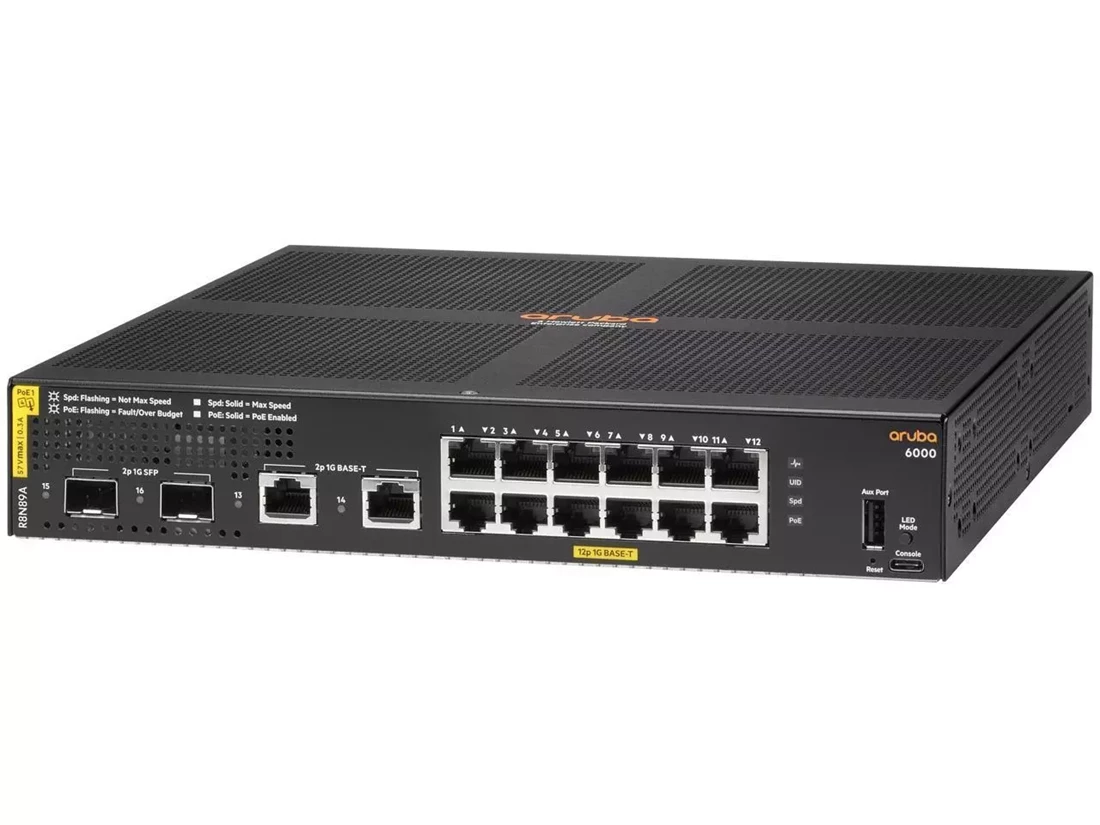

HPE R8N89A Aruba 6000 12g Class4 Poe 2g/2sfp 139w Switch - Switch - 12 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 12 Ports - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp + 2 X 1000base-t
  • Power Over Ethernet (poe) : Poe
  • Poe Budget : 139 W
  • Performance : Packet Buffer Size: 12.38 Mb ¦ Throughput: 23.8 Mpps ¦ Switching Capacity: 32 Gbps ¦ Latency (1 Gbps): 2.3 Μs ¦ Latency (10 Gbps): 2.6 Μs
  • Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
  • Mac Address Table Size : 8192 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Igmpv2, Igmpv3
  • Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius
  • Encryption Algorithm : Ssl
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
  • Processor : 1 X Arm A9: 1.016 Ghz
  • Ram : 4 Gb Ddr3 Sdram
  • Flash Memory : 16 Gb

    Expansion / Connectivity :
    Interfaces :
    12 X 10/100/1000 Base-t Rj-45 Poe Class 4 - 139 W ¦ 2 X 10gbit Lan Sfp ¦ 2 X Gigabit Lan ¦ 1 X Usb Type A ¦ 1 X Usb-c Console

    Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-240 V (50/60 Hz)
  • Power Consumption Operational : 21.9 Watt

    Condition : New Open Box
    Availability : In Stock
    Manufacturer Warranty : Full
    Our Warranty : 30 Days
