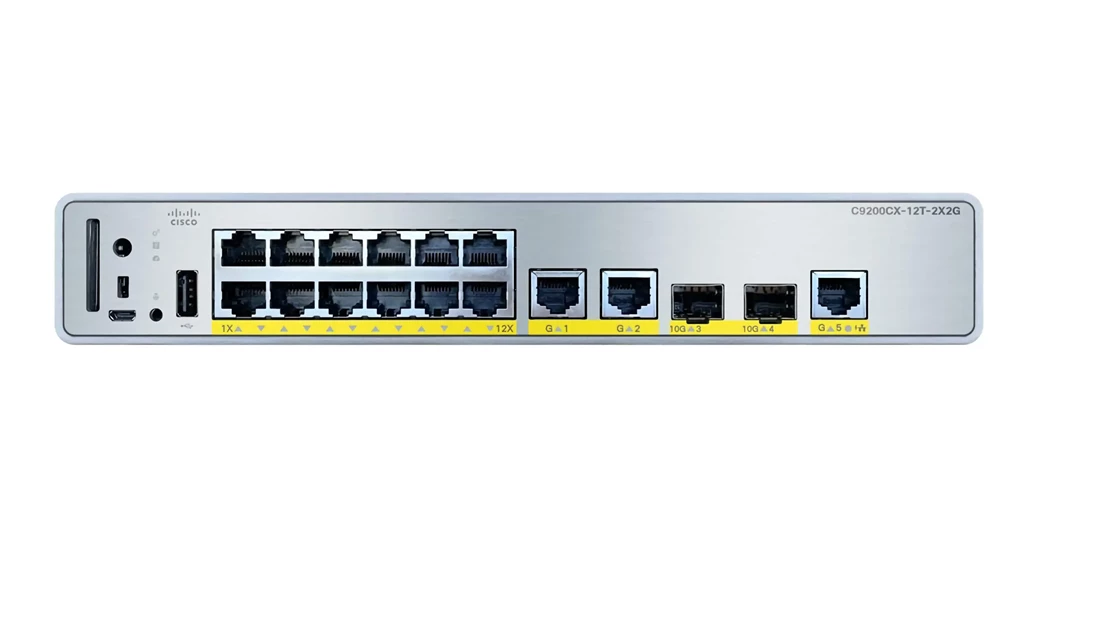

Cisco C9200CX-12T-2X2G-A Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch f/s
C9200CX-12T-2X2G-A
C9200CX-12T-2X2G-A
C9200CX-12T-2X2G-A
C9200CX-12T-2X2G-A
C9200CX-12T-2X2G-A

Cisco C9200CX-12T-2X2G-A Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch f/s

Part Number: C9200CX-12T-2X2G-A
BRAND: CISCO | More NETWORKING from CISCO
$1,995.00
Capacity: 16 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

CISCO C9200CX-12T-2X2G-A Catalyst 9200cx - Network Advantage - Switch - Compact - L3 - Managed - 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) - Rack-mountable :

Key Features :

  • Device Type : Switch - 12 Ports - L3 - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)
  • Power Over Ethernet (poe) : Upoe+
  • Performance : Switching Capacity: 120 Gbps , Forwarding Rate: 95.23 Mpps , Packet Buffer Size: 6 Mb
  • Capacity : Virtual Networks: 16 , Ipv4 Routes: 14000 , Direct Ipv4 Routes: 10000 , Indirect Ipv4 Routes: 4000 , Ipv4 Routing Entries: 4000 , Ipv6 Routing Entries: 2000 , Multicast Scale: 1000 , Qos Scale Entries: 1000 , Acl Scale Entries: 1600 , Flexible Netflow Entries: 16000 , Vlan Ids: 4096 , Pvst Instances: 128 , Stp Virtual Ports For Pvst: 13000 , Stp Virtual Ports For Mst: 13000
  • Mac Address Table Size : 32000 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Yang
  • Encryption Algorithm : 256-bit Aes
  • Features : Access Control List (acl) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Fanless, Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Class Of Service (cos), Flexible Netflow (fnf), 802.1x Authentication, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Zero-touch Provisioning (ztp), Switched Port Analyzer (span), Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Unified Access Data Plane (uadp) 2.0, Trustworthy Systems
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3at, Ieee 802.3bt
  • Ram : 4 Gb
  • Flash Memory : 8 Gb
  • Built-in Devices : Rfid Tag
  • Status Indicators : Power


    Expansion / Connectivity :
    Interfaces :
  • 12 X 1000base-t Rj-45
  • 2 X 1000base-t Rj-45
  • 2 X 1/10gbase-x Sfp+ Uplink
  • 1 X 1000base-t Rj-45 Upoe+ - 60 W
  • 1 X Console (micro-usb)
  • 1 X Usb 2.0

    Expansion Slots :
  • 1 (total) / 1 (free) X Sd Memory Card

    Power :
  • Power Device : External Power Adapter (not Included)
  • Power Provided : 80 Watt
  • Voltage Required : Ac 100-240 V

    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
