Detail overview

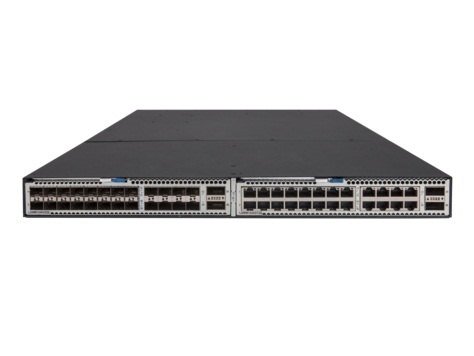

HPE - Flexfabric 5930-2slot+2qsfp+ - Switch - 2 Ports - Managed - Rack-mountable (JH178A) :

Key Features :

Device Type : Switch - 2 Ports - L3 - Managed

Enclosure Type : Rack-mountable - 1u

Subtype : 40 Gigabit Ethernet

Ports : 2 X 40 Gigabit Qsfp+

Performance : Latency (64-byte Packets) : 1 Μs ¦ Throughput : 1071 Mpps ¦ Routing/switching Capacity : 1.44 Tbps

Capacity : Virtual Interfaces (vlans) : 4096 ¦ Ipv4 Routing Table Entries : 120000 ¦ Ipv6 Routing Table Entries : 60000

Mac Address Table Size : 288k Entries

Jumbo Frame Support : 10000 Bytes

Routing Protocol : Ospf, Rip, Bgp-4, Is-is, Rip-2, Bgp, Igmp, Vrrp, Ospfv3, Static Ipv6 Routing, Ripng, Mpls, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Ssh

Authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)

Features : Flow Control, Dhcp Support, Arp Support, Port Mirroring, Weighted Round Robin (wrr) Queuing, Sntp Support, Weighted Fair Queuing (wfq), Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Data Center Bridging (dcb), Transparent (n_port Id Virtualization - Npiv) Mode Support, Registered State Change Notification (rscn) Support, Name Server-based Zoning, Strict Priority (sp), Edge Virtual Bridging (evb), Intelligent Resilient Framework Technology (irf), Redundant Fans, Reverse Airflow Support, 12.2mb Packet Buffer, Precision Time Protocol (ptp), Fcoe Support, Rdma Over Converged Ethernet (roce), Virtual Ethernet Port Aggregator (vepa), In-service Software Upgrade (issu), Fcoe Initialization Protocol (fip), Deficit Round Robin (drr), Vxlan Tunnel Endpoints (vtep) Support

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1aq, Ieee 802.3ag

Ram : 4 Gb - Sdram

Flash Memory : 1 Gb

Expansion / Connectivity :

Interfaces : 2 X 40gbit Lan - Qsfp+ ¦ 1 X Serial (console) - Rj-45 ¦ 1 X Management - Rj-45 ¦ 1 X Usb 2.0 - Type A

Expansion Slots : 2 (total) / 2 (free) X Expansion Slot

Installed Modules Qty (max) : 0 (installed) / 2 (max)

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 0 (installed) / 2 (max)

Power Redundancy : Yes

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
