** Image may not exactly match product **

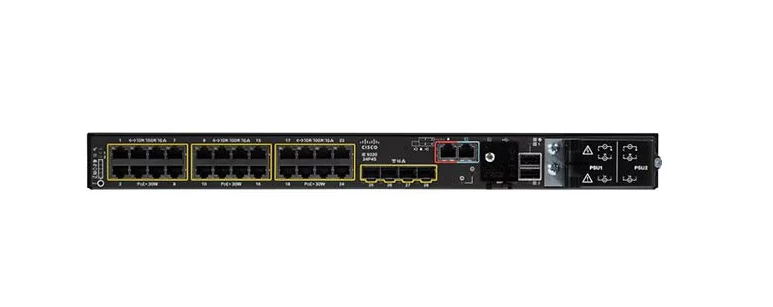

Cisco IE-9320-24P4S-A 24 Ports Catalyst IE9320 Rugged Series Switch
IE-9320-24P4S-A

Cisco IE-9320-24P4S-A 24 Ports Catalyst IE9320 Rugged Series Switch

Part Number: IE-9320-24P4S-A
BRAND: CISCO | More NETWORKING from CISCO
$7,800.00
Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

CISCO IE-9320-24P4S-A 24 Ports Catalyst Ie9320 Manageable 10/100/1000base-t 4 Sfp Slots 37w Power Consumption 385 W Poe Budget Twisted Pair Poe Ports Rack Mountable Ethernet Switch.


General Information:
  • Product Type: Ethernet Switch
  • Manufacturer Part Number: IE-9320-24P4S-A
  • Manufacturer: CISCO Systems, Inc
  • Product Name: Catalyst Ie9320 Ethernet Switch
  • Device Type: Switch - 24 Ports - Managed - Stackable
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 10/100/1000 (poe+) + 4 X 1000base-x Sfp (uplink)
  • Power Over Ethernet (poe): Poe+
  • Poe Budget: 385 W
  • Performance: Forwarding Rate: 28 Gbps ¦ Switching Bandwidth: 56 Gbps
  • Capacity:
    - Queues: 8
    - Igmp Multicast Groups: 1000
    - Vlans Supported: 1024
    - Ipv4 Routes: 4000
    - Ipv6 Routes: 2000
    - Stp Instances: 128
    - Acl Entries: 1408
  • Switched Virtual Interfaces (svis): 984
  • Sxp Sessions: 200
  • Mac Address Table Size: 16k Entries
  • Routing Protocol: Hsrp, Bgp, Eigrp, Is-is, Lisp, Vrf, Msdp, Stp, Igmp
  • Remote Management Protocol: Http, Https, Snmp
  • Encryption Algorithm: Eap-tls
  • Authentication Method: Radius, Tacacs+, Secure Shell (ssh)
  • Features: Nsf, Trustsec Support, Acl Support, Sgacl, Nat Support, Fnf, Rep, Prp, Profinet, Mrp, Hsr, Fanless, Ptp, Etherchannel Support, Macsec
  • Compliant Standards: Ieee 1588v2, Ieee 802.3af, Ieee 802.3at, Ieee 802.3bt, Ieee 802.1ab (lldp), Ieee 802.1q, Ieee 802.1s, Ieee 802.1w, Ieee 802.3ad (lacp), Ieee 802.1ae, Ieee 802.1p, Ieee 802.1d, Ieee 802.1x, Ieee 802.3ab, Ieee 802.3ah, Ieee 802.3u, Ieee 802.3z
  • Ram: 4 Gb
  • Flash Memory: 8 Gb
  • Built-in Devices: Sd Card Reader

    Expansion / Connectivity:
  • Interfaces:
    - 24 X 10/100/1000 Base-t Rj-45 Poe+
    - 4 X Gigabit Lan Sfp+ Uplink
    - 2 X Usb 2.0
    - 4 X Alarm Input
    - 1 X Alarm Output
    - 1 X Serial (rs-232) Rj-45 Console
    - 1 X Micro-usb Console
    - 2 X Network Stack Device
  • Expansion Slots: 1 (total) / 1 (free) X Sd Memory Card

    Power:
  • Installed Qty: 0
  • Max Supported Qty: 2
  • Power Redundancy: Yes
  • Power Redundancy Scheme: 1+1
  • Power Consumption Operational: 37 Watt

    Condition: New.
    Availability: In Stock.
    Serversupply Warranty: 90 Days.
