Detail overview

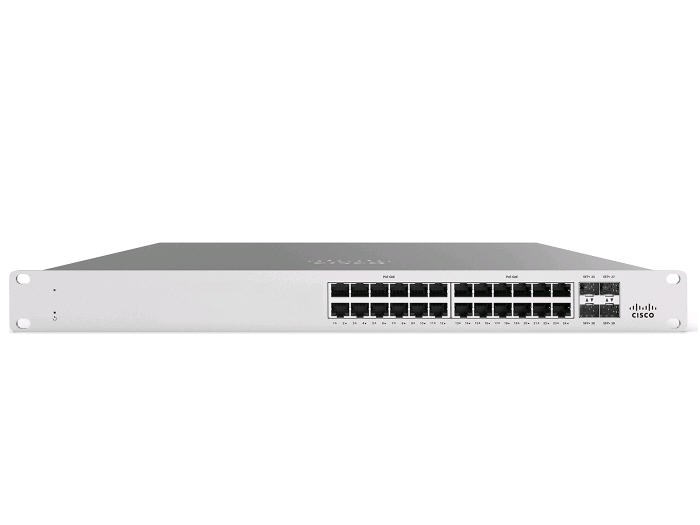

CISCO MS125-24P-HW Meraki Cloud Managed Ms125-24p - Switch - Managed - 24 X 10/100/1000 (poe) + 4 X 10 Gigabit Sfp+ - Desktop, Wall-mountable - Poe.

General Information:

Features : Flow Control, Auto-negotiation, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Port Mirroring, E-mail Alert, Broadcast Storm Control, Firmware Upgradable, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Sms Alert, Stp Root Guard, Fanless, Link Aggregation Control Protocol (lacp), Dhcp Client, Security Lock Slot (cable Lock Sold Separately), Crossover Detection, Single Sign-on (sso) Support, Role-based Access Control (rbac), CISCO Discovery Protocol, Stp Bpdu Guard, Zero-touch Provisioning (ztp), Dscp To Cos Mutation

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1ab (lldp), Ieee 802.3at

Device Type : Switch - 24 Ports - Managed

Enclosure Type : Desktop, Wall-mountable 1u

Remote Management Protocol : Snmp

Capacity : Vlans Supported: 4094 ¦ Mac Forwarding Entries: 16000

Mac Address Table Size : 16000 Entries

Authentication Method : Radius

Performance : Switching Capacity: 128 Gbps ¦ Forwarding Rate: 95.23 Mpps

Power Over Ethernet (poe) : Poe

Ports : 24 X 10/100/1000 (poe) + 4 X 10 Gigabit Sfp+

Jumbo Frame Support : 9578 Bytes

Poe Budget : 370 W

Subtype : 10 Gigabit Ethernet

Expansion / Connectivity:

Interfaces : 24 X 1000base-t Rj-45 Poe ¦ 4 X 10gbit Lan Sfp+

Miscellaneous:

Compliant Standards : Csa, Ic, Fcc, Rohs, Rcm

Rack Mounting Kit : Included

Mtbf : 294,713 Hours

Power:

Power Device : Internal Power Supply

Voltage Required : Ac 120/230 V (47 - 63 Hz)

Power Consumption Operational : 426.1 Watt

Condition: New.
Availability: In Stock.
Usually Ships: Same Day.
Serversupply Warranty: 30 Days.
