Detail overview

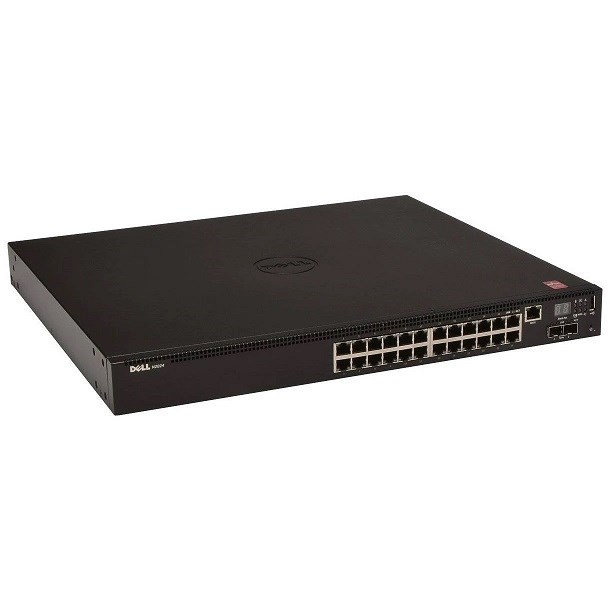

dell 210-abnv Networking N2024 - Switch - 24 Ports - Managed - Rack-mountable.

key Features :
device Type : Switch - 24 Ports - L2+ - Managed - Stackable
enclosure Type : Rack-mountable 1u
subtype : Gigabit Ethernet
ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+
performance : Switching Fabric Bandwidth: 172 Gbps ¦ Forwarding Performance: 128 Mpps ¦ Stacking Bandwidth: 84 Gbps
capacity : Virtual Interfaces (vlans): 4096 ¦ Arp Entries: 1024 ¦ Ndp Entries: 400 ¦ Priority Queues Per Port: 8 ¦ Ipv4 Routes (static): 256 ¦ Ipv6 Routes (static): 128 ¦ Ipv4 Routes (dynamic): 256 ¦ Vlan Routing Interfaces: 256 ¦ Acl: 100 ¦ Max Acl Rules System-wide: 2048 ¦ Maximum Rules Per Acl: 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256 ¦ Maximum Vlan Interfaces With Acls Applied: 24 ¦ Maximum Aggregation Groups: 128 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Maximum Member Ports Per Lag: 8
mac Address Table Size : 8192 Entries
routing Protocol : Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing
remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Tftp
encryption Algorithm : Md5, Aes, Ssl, Tls
authentication Method : Secure Shell (ssh), Radius, Tacacs+
features : Flow Control, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Per-vlan Spanning Tree Plus (pvst+), Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans, Protocol-based Vlans Support, Multi Chassis Link Aggregation Group (mlag)
compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az
ram : 1 Gb
flash Memory : 256 Mb

expansion / Connectivity :
interfaces : 24 X Gigabit Lan - Rj-45 ¦ 2 X 10gbit Lan - Sfp+ ¦ 1 X Serial (rs-232) - Rj-45 - Management ¦ 1 X Usb - Type A ¦ 2 X Network Stack Device

power :
power Device : Internal Power Supply
installed Qty : 1
power Provided : 100 Watt
power Consumption Operational : 42.9 Watt
features : Redundant Power System (rps) Connector

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days.
