Detail overview

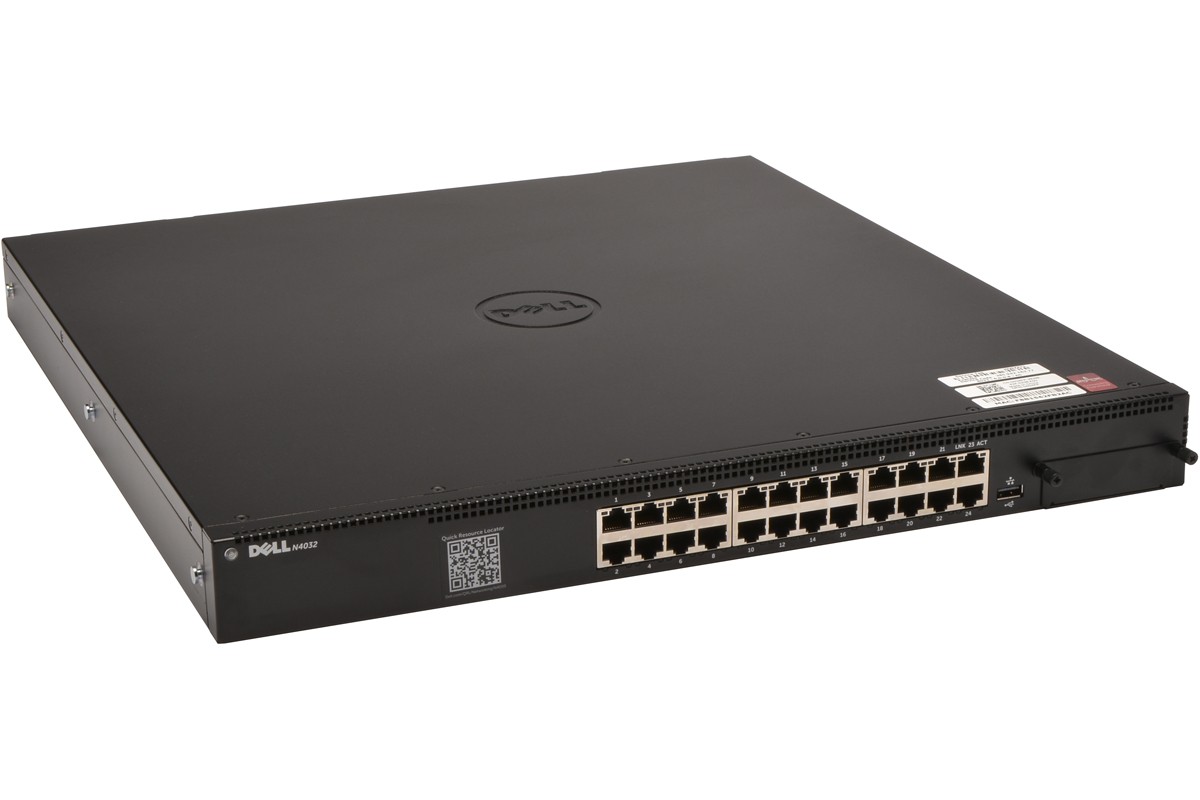

DELL 210-ABVY Networking N4032 Switch 24 Ports L3 Managed Stackable .
Key Features :
Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 10gbase-t
Performance : Switching Fabric Bandwidth: 640 Gbps Forwarding Performance: 476 Mpps
Capacity : Mac Addresses: 131072 Ipv4 Routes (static): 1024 Ipv6 Routes (static): 1024 Ipv4 Routes (dynamic): 8160 Ipv6 Routes (dynamic): 4096 Maximum Member Ports Per Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144 Lag Groups: 128 Priority Queues Per Port: 8 Ospf Routes: 8160 Rip Routes: 512 Ecmp Next Hops Per Route: 4 Ecmp Groups: 1024 Vlan Routing Interfaces: 128 Vlans Supported: 4094 Multicast Entries (ipv4): 512 Multicast Entries (ipv6): 256 Arp Entries: 6144 Ndp Entries: 400 Acl: 100 Maximum Rules Per Acl: 1023 Max Acl Rules System-wide: 3072 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 2047 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 131072 Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Encryption Algorithm : Aes, Ssl, Tls 1.0
Authentication Method : Radius, Tacacs+, Ldap
Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dai), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1qbb, Ieee 802.1qaz
Ram : 2 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces :
24 X 10gbase-t Rj-45
1 X Gigabit Lan Rj-45 Management
1 X Serial (rs-232) Rj-45 Management
1 X Usb Type A Management
Expansion Slots :
1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Yes
Power Provided : 460 Watt
Power Consumption Operational : 240 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
