Detail overview

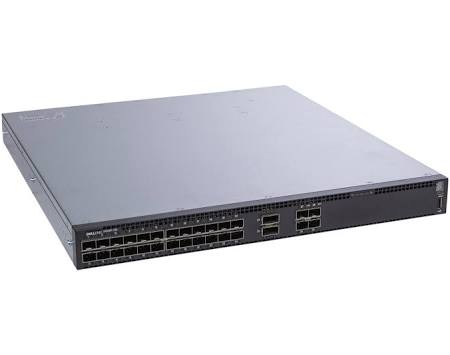

DELL 210-ALSX Emc Networking S4128f-on Managed L3 Switch - 28 10-gigabit Sfp+ Ports & 2 100 Gigabit Qsfp28 Ports.
Key Features :
Device Type : Switch - 28 Ports - L3 - Managed
Enclosure Type : Front To Back Airflow Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 28 X 10 Gigabit Sfp+ + 2 X 100 Gigabit Qsfp28
Performance : Switching Capacity: 960 Gbps Throughput: 720 Mpps
Capacity : Arp Entries: 200000 Ipv4 Routes: 200000 Ipv6 Routes: 64000 Ipv6 Hosts: 130000 Multicast Hosts: 8000 Links Per Group: 32 Link Aggregation Groups: 128 Layer 2 Vlans: 4000 Mstp Instances: 32 Acl Entries (ingress): 6000 Acl Entries (egress): 1000
Mac Address Table Size : 272000 Entries
Routing Protocol : Ospf, Bgp-4, Ospfv2, Policy-based Routing (pbr)
Remote Management Protocol : Snmp 1, Snmp 2
Encryption Algorithm : Md5
Authentication Method : Radius, Tacacs
Features : Flow Control, Arp Support, Port Mirroring, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Lacp Support, Lldp Support, Dynamic Vlan Support (gvrp), Priority-based Flow Control (pfc), Internet Control Message Protocol (icmp), Dns Client
Compliant Standards : Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1t, Ieee 802.1ab (lldp), Ieee 802.3ba, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.3bj
Ram : 4gb
Expansion / Connectivity
Interfaces:
28 X 10gbit Lan Sfp+
2 X 100gbit Lan Qsfp28
1 X Serial (rs-232) Rj-45 Management
1 X 10/100/1000 Base-t Rj-45 Management
Power
Power Device : External Power Adapter - Hot-plug
Installed Qty : 2
Power Redundancy : Yes
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 260 Watt
Condition : Refurbished
Availability : In Stock
Warranty : 30 Days .
