Detail overview

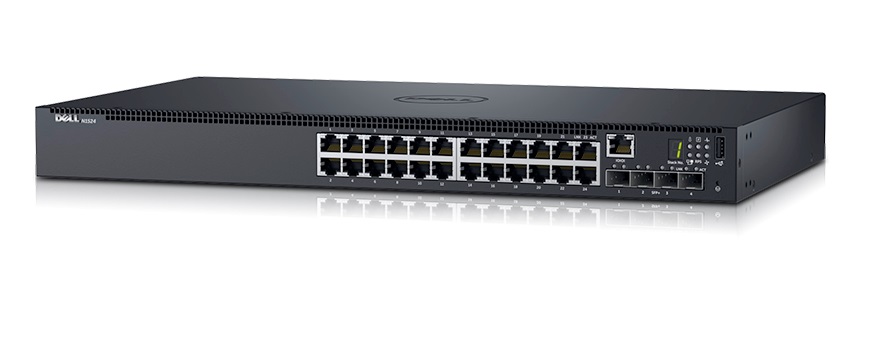

DELL 210-ASNF Networking N1524 Switch 24 Ports Managed - Rack-mountable.

Key Features :

Device Type : Switch - 24 Ports - L2+ - Managed - Stackable

Enclosure Type : Rack-mountable - 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Sfp+

Performance : Switching Fabric Bandwidth : 128 Gbps Forwarding Performance : 128 Mpps

Capacity : Virtual Interfaces (vlans) : 512 Arp Entries : 1024 Ndp Entries : 400 Priority Queues Per Port : 8 Ipv4 Routes (static) : 256 Ipv6 Routes (static) : 128 Ipv4 Routes (dynamic) : 256 Vlan Routing Interfaces : 128 Acl : 100 Max Acl Rules System-wide : 2048 Maximum Rules Per Acl : 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 1023 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1023 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules : 509 Maximum Vlan Interfaces With Acls Applied : 24 Maximum Dynamic Ports Per Switch Stack : 144 Maximum Member Ports Per Lag : 8 Mac Addresses : 16000

Mac Address Table Size : 16000 Entries

Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing

Remote Management Protocol : Telnet, Tftp

Encryption Algorithm : Md5, Aes, Ssl, Tls

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Auto-negotiation, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Broadcast Storm Control, Redundant Fans

Ram : 1 Gb

Flash Memory : 256 Mb

Expansion / Connectivity :
interfaces :

24 X Gigabit Lan - Rj-45

4 X 10gbit Lan - Sfp+

1 X Serial (rs-232) - Rj-45 - Management

1 X Usb - Type A

2 X Network Stack Device

Power :

Power Device : Internal Power Supply

Installed Qty : 1

Power Provided : 40 Watt

Power Consumption Operational : 30.2 Watt

Condition : Refurbished
Availability : In Stock.
Our Warranty : 30 Days.
