Detail overview

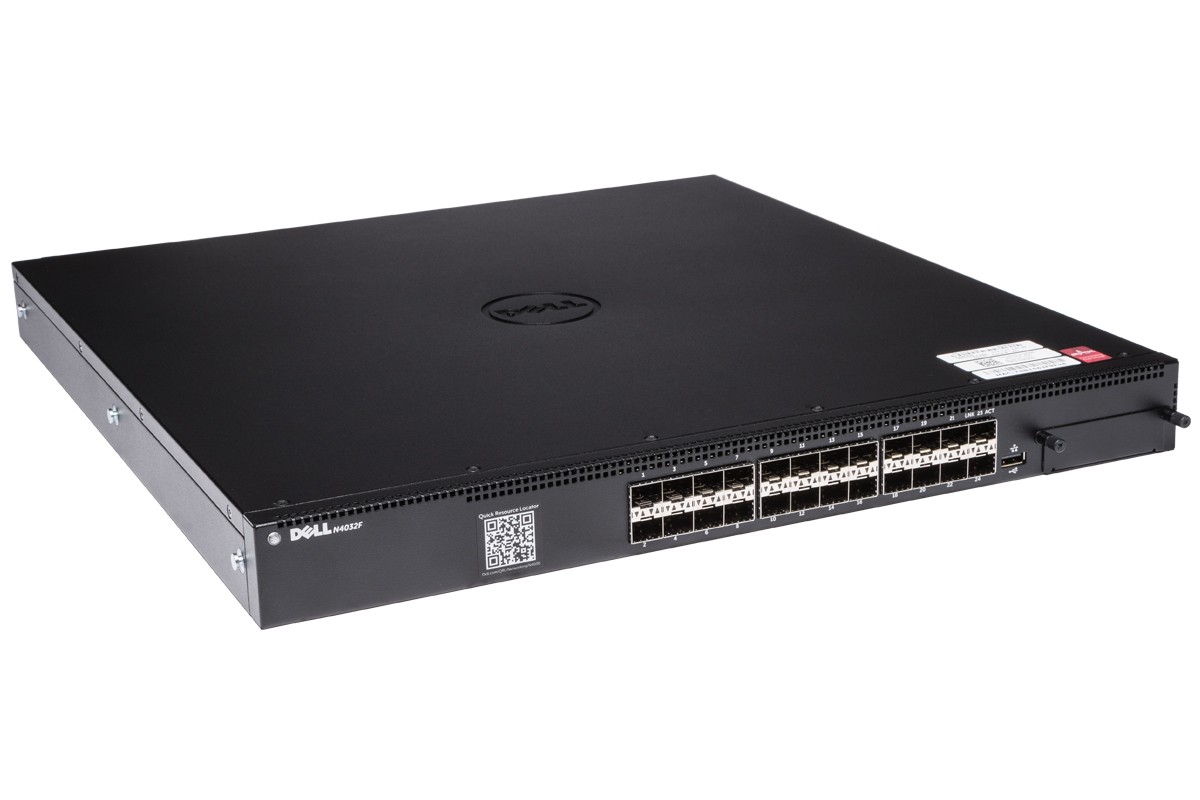

Dell 5kgdh Networking N4032f Switch 24 Ports L3 Managed Stackable .

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 24 X 10 Gigabit Sfp+
  • Performance : Switching Fabric Bandwidth : 640 Gbps ¦ Forwarding Performance : 476 Mpps
  • Capacity : Mac Addresses : 131072 ¦ Ipv4 Routes (static) : 1024 ¦ Ipv6 Routes (static) : 1024 ¦ Ipv4 Routes (dynamic) : 8160 ¦ Ipv6 Routes (dynamic) : 4096 ¦ Maximum Member Ports Per Lag : 8 ¦ Maximum Dynamic Ports Per Switch Stack : 144 ¦ Lag Groups : 128 ¦ Priority Queues Per Port : 8 ¦ Ospf Routes : 8160 ¦ Rip Routes : 512 ¦ Ecmp Next Hops Per Route : 4 ¦ Ecmp Groups : 1024 ¦ Vlan Routing Interfaces : 128 ¦ Vlans Supported : 4094 ¦ Multicast Entries (ipv4) : 512 ¦ Multicast Entries (ipv6) : 256 ¦ Arp Entries : 6144 ¦ Ndp Entries : 400 ¦ Acl : 100 ¦ Maximum Rules Per Acl : 1023 ¦ Max Acl Rules System-wide : 3072 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 2047 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules : 512 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 1021 ¦ Maximum Vlan Interfaces With Acls Applied : 24
  • Mac Address Table Size : 131072 Entries
  • Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
  • Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
  • Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto- Negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dai), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support, Protocol-based Vlans Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1qbb, Ieee 802.1qaz
  • Power Redundancy : Yes

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days.
