Detail overview

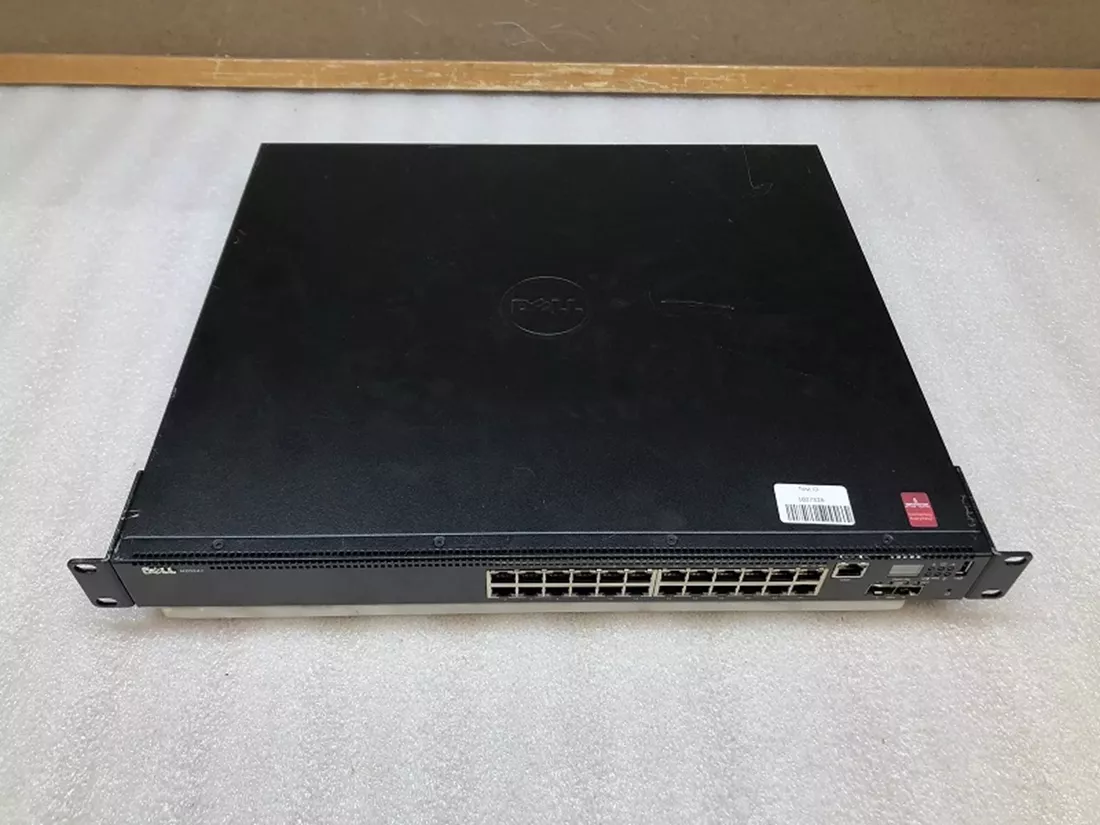

Dell Gf8hj N2024p Layer 3 Switch 24 Ports Poe+ Manageable Switch .

Key Features :

  • Device Type : Switch - 24 Ports - L2+ - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe+
  • Performance : Switching Fabric Bandwidth : 172 Gbps Forwarding Performance : 128 Mpps Stacking Bandwidth : 84 Gbps
  • Capacity : Virtual Interfaces (vlans) : 4096 Arp Entries : 1024 Ndp Entries : 400 Priority Queues Per Port : 8 Ipv4 Routes (static) : 256 Ipv6 Routes (static) : 128 Ipv4 Routes (dynamic) : 256 Vlan Routing Interfaces : 256 Acl : 100 Max Acl Rules System-wide : 2048 Maximum Rules Per Acl : 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules : 256 Maximum Vlan Interfaces With Acls Applied : 24 Maximum Aggregation Groups : 128 Maximum Dynamic Ports Per Switch Stack : 144 Maximum Member Ports Per Lag : 8
  • Mac Address Table Size : 8192 Entries
  • Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing
  • Remote Management Protocol : Telnet, Tftp
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Flow Control, Auto-negotiation, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Access Control List (acl) Support, Front To Back Airflow, Ipv4 Support, Energy Efficient Ethernet, Management Information Base (mib), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans
  • Ram : 1 Gb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 24 X Gigabit Lan - Rj-45 - Poe+ - 30.8 W
  • 2 X 10gbit Lan - Sfp+ 1 X Serial (rs-232) - Rj-45 - Management
  • 1 X Usb - Type A 2 X Network Stack Device

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 1
  • Power Provided : 1000 Watt
  • Power Consumption Operational : 42.9 Watt
  • Features : Redundant Power System (rps) Connector

    Condition : Refurbished
    Availability : In Stock.
    Our Warranty : 30 Days.
