Detail overview

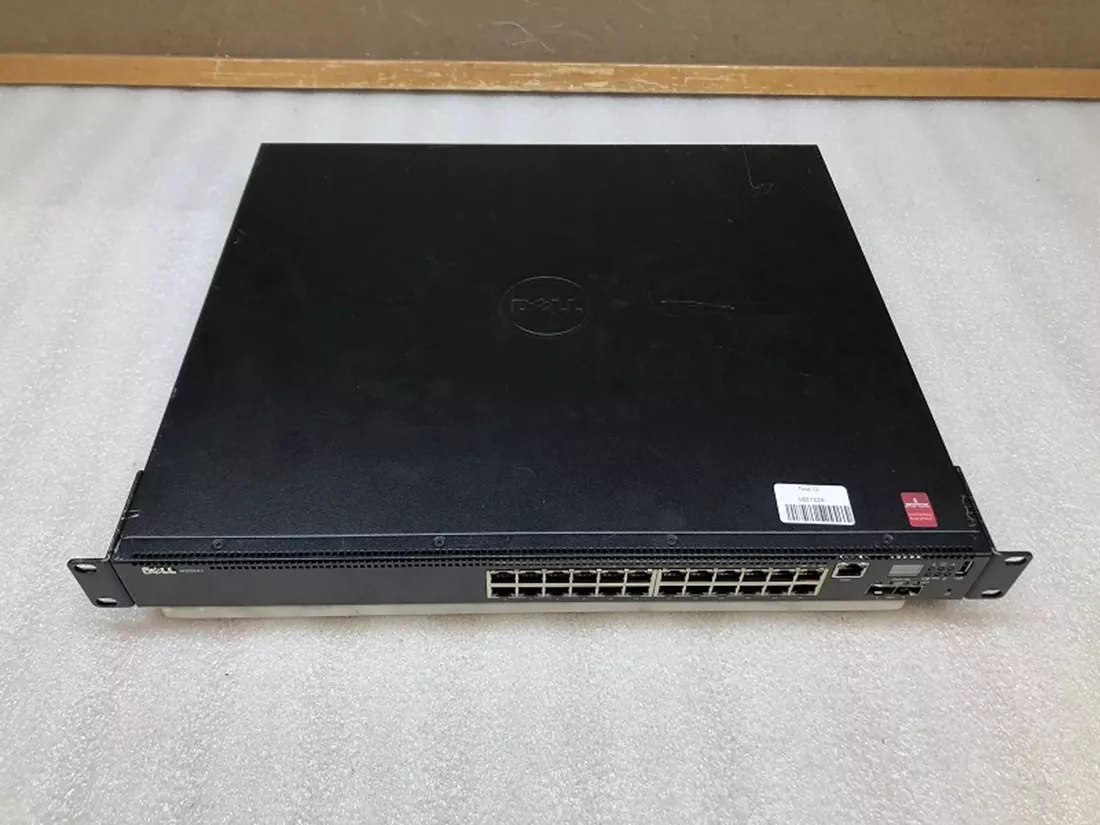

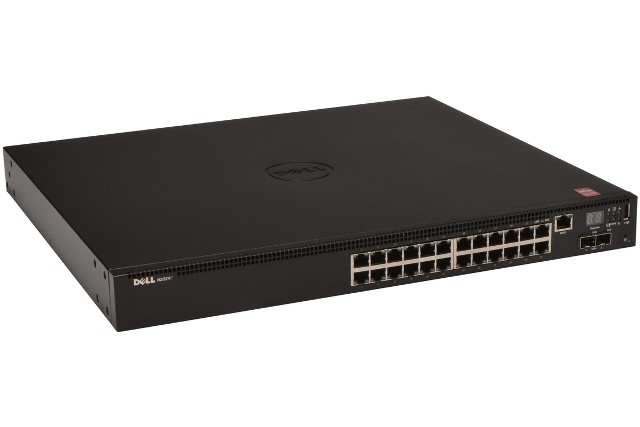

DELL N2024P Layer 3 Switch 24 Ports Poe+ Manageable Switch

Key Features

Device Type : Switch 24 Ports L2+ Managed Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe+

Performance : Switching Fabric Bandwidth : 172 Gbps Forwarding Performance : 128 Mpps Stacking Bandwidth : 84 Gbps

Capacity : Virtual Interfaces (vlans) : 4096 Arp Entries : 1024 Ndp Entries : 400 Priority Queues Per Port : 8 Ipv4 Routes (static) : 256 Ipv6 Routes (static) : 128 Ipv4 Routes (dynamic) : 256 Vlan Routing Interfaces : 256 Acl : 100 Max Acl Rules System-wide : 2048 Maximum Rules Per Acl : 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules : 256 Maximum Vlan Interfaces With Acls Applied : 24 Maximum Aggregation Groups : 128 Maximum Dynamic Ports Per Switch Stack : 144 Maximum Member Ports Per Lag : 8

Mac Address Table Size : 8192 Entries

Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing

Remote Management Protocol : Telnet, Tftp

Encryption Algorithm : Md5, Aes, Ssl, Tls

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Flow Control, Auto-negotiation, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Access Control List (acl) Support, Front To Back Airflow, Ipv4 Support, Energy Efficient Ethernet, Management Information Base (mib), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans

Ram : 1 Gb

Flash Memory : 256 Mb

Expansion / Connectivity :
Interfaces :

24 X Gigabit Lan - Rj-45 - Poe+ - 30.8 W

2 X 10gbit Lan - Sfp+

1 X Serial (rs-232) - Rj-45 - Management

1 X Usb - Type A 2 X Network Stack Device

Power :

Power Device : Internal Power Supply

Installed Qty : 1

Power Provided : 1000 Watt

Power Consumption Operational : 42.9 Watt

Features : Redundant Power System (rps) Connector

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
