Detail overview

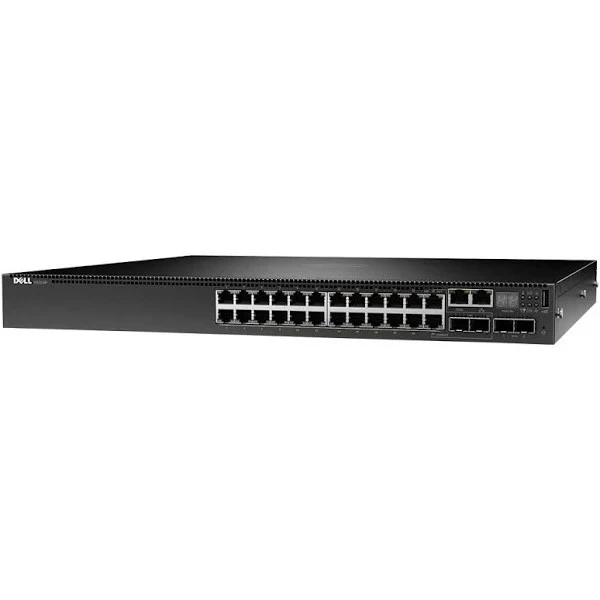

Dell Networking N3024p Switch 24 Ports Managed Rack-mountable.

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
  • Power Over Ethernet (poe) : Poe+
  • Performance : Switching Fabric Bandwidth: 212 Gbps , Forwarding Performance: 158 Mpps , Stacking Bandwidth: 84 Gbps
  • Capacity : Mac Addresses: 16384 , Ipv4 Routes (static): 1024 , Ipv6 Routes (static): 1024 , Ipv4 Routes (dynamic): 8160 , Ipv6 Routes (dynamic): 4096 , Maximum Member Ports Per Lag: 8 , Maximum Dynamic Ports Per Switch Stack: 144 , Lag Groups: 128 , Ospf Routes: 8160 , Rip Routes: 512 , Ecmp Next Hops Per Route: 4 , Ecmp Groups: 64 , Vlan Routing Interfaces: 128 , Vlans Supported: 4094 , Multicast Entries (ipv4): 512 , Multicast Entries (ipv6): 256 , Arp Entries: 6144 , Ndp Entries: 400 , Acl: 100 , Maximum Rules Per Acl: 1023 , Max Acl Rules System-wide: 4096 , Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 , Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 , Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 , Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 , Maximum Vlan Interfaces With Acls Applied: 24
  • Mac Address Table Size : 16k Entries
  • Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
  • Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Multiple Spanning Tree Protocol (mstp) Support, Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az
  • Ram : 1 Gb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
  • Interfaces : 24 X Gigabit Lan - Rj-45 , 2 X 10gbit Lan - Sfp+ , 2 X Gigabit Lan , 1 X Serial (rs-232) - Rj-45 - Management , 1 X Usb - Type A , 2 X Network Stack Device
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Redundancy : Optional
  • Power Provided : 715 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days.
