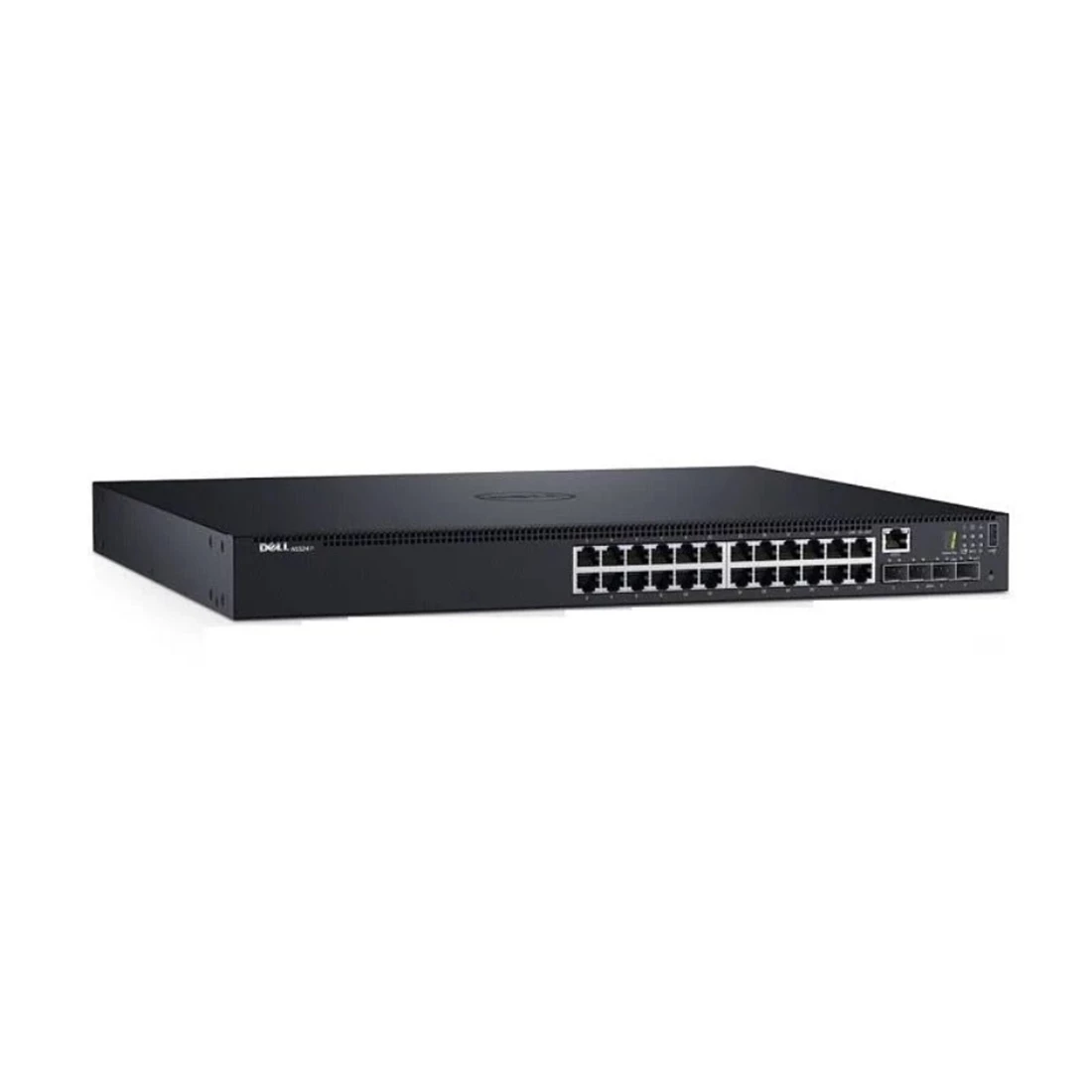

Dell EMC Networking N3224P-ON - 24 ports - Switch Rack-mountable
N3224P-ON
N3224P-ON
N3224P-ON
N3224P-ON
N3224P-ON

Dell EMC Networking N3224P-ON - 24 ports - Switch Rack-mountable

Part Number: N3224P-ON
BRAND: DELL | More NETWORKING from DELL
$815.00
Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

DELL Emc Powerswitch N3200-on Series N3224P-ONF - Switch - 24 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Front To Back Airflow Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet / 25 Gigabit Ethernet
  • Ports : 24 X 10/100/1000/2.5g/5g/10gbase-t (poe++) + 4 X 25 Gigabit Sfp28 + 2 X 100 Gigabit Qsfp28
  • Power Over Ethernet (poe) : Poe++
  • Performance : Switching Capacity: 1.08 Bpps | Forwarding Rate: 1500 Mpps
  • Capacity : Ipv4 Routes (static): 1024 | Ipv6 Routes (static): 1024 | Ipv4 Routes (dynamic): 8160 | Ipv6 Routes (dynamic): 4096 | Maximum Member Ports Per Lag: 8 | Maximum Dynamic Ports Per Switch Stack: 144 | Lag Groups: 128 | Ospf Routes: 8158 | Rip Routes: 512 | Ecmp Next Hops Per Route: 16 | Ecmp Groups: 1024 | Vlan Routing Interfaces: 128 | Vlans Supported: 4094 | Multicast Entries (ipv4): 1023 | Multicast Entries (ipv46): 1021 | Arp Entries: 6144 | Ndp Entries: 2560 | Acl: 100 | Maximum Rules Per Acl: 1023 | Max Acl Rules System-wide: 3914 | Maximum Acl Rules Per Interface (ipv4) Egress Rules: 511 | Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 | Maximum Acl Rules Per Interface (ipv6) Egress Rules: 506 | Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 | Maximum Vlan Interfaces With Acls Applied: 24
  • Mac Address Table Size : 32k Entries
  • Routing Protocol : Ospf, Rip, Rip-2, Igmpv2, Igmp, Ospfv2, Igmpv3, Ospfv3, Ipv4-to-ipv6 Multicast
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax
  • Ram : 4 Gb
  • Flash Memory : 8 Gb

    Expansion / Connectivity :
    interfaces :
  • 24 X 10/100/1000/2.5g/5g/10gbase-t (poe++) Rj-45 Poe+ - 90 W | 4 X 25gbit Lan Sfp28 | 1 X 10/100/1000 Base-t Rj-45 Management | 2 X 100gbit Lan Qsfp28 Stacking | 1 X Usb Type A | 1 X Micro-usb 2.0 Type B Console | 1 X Serial (rs-232) Rj-45 Console

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Redundancy : Optional
  • Power Redundancy Scheme : 1+1 (with Optional Power Supply)
  • Power Provided : 1600 Watt
  • Power Consumption Operational : 2740 Watt
  • 80 Plus Certification : 80 Plus Platinum

    Condition : Refurbished
    Availability : In Stock.
    Our Warranty : 90 Days
