Detail overview

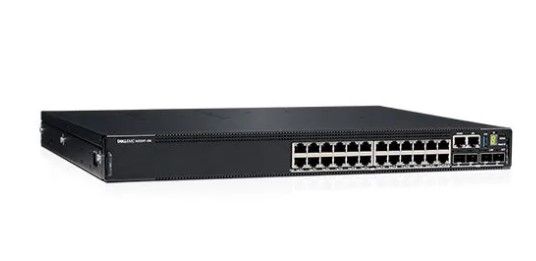

DELL Emc Powerswitch N3200-on Series N3224T-ON Switch 24 Ports Managed Rack-mountable:

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Front To Back Airflow Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Sfp+ + 2 X 100 Gigabit Qsfp28

Performance : Switching Capacity: 528 Gbps ¦ Forwarding Rate: 733 Mpps

Capacity : Ipv4 Routes (static): 1024 ¦ Ipv6 Routes (static): 1024 ¦ Ipv4 Routes (dynamic): 8160 ¦ Ipv6 Routes (dynamic): 4096 ¦ Maximum Member Ports Per Lag: 8 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Lag Groups: 128 ¦ Ospf Routes: 8158 ¦ Rip Routes: 512 ¦ Ecmp Next Hops Per Route: 16 ¦ Ecmp Groups: 1024 ¦ Vlan Routing Interfaces: 128 ¦ Vlans Supported: 4094 ¦ Multicast Entries (ipv4): 1023 ¦ Multicast Entries (ipv6): 1021 ¦ Arp Entries: 6144 ¦ Ndp Entries: 2560 ¦ Acl: 100 ¦ Maximum Rules Per Acl: 1023 ¦ Max Acl Rules System-wide: 3914 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 511 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 506 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size : 32k Entries

Routing Protocol : Ospf, Rip, Rip-2, Igmpv2, Igmp, Ospfv2, Igmpv3, Ospfv3, Ipv4-to-ipv6 Multicast

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2

Encryption Algorithm : Md5, Aes, Ssl, Tls

Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support

Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax

Ram : 4 Gb

Flash Memory : 8 Gb

Expansion / Connectivity :
Interfaces

24 X 10/100/1000 Base-t Rj-45

4 X 10gbit Lan Sfp+

1 X 10/100/1000 Base-t Rj-45 Management

2 X 100gbit Lan Qsfp28 Stacking

1 X Usb Type A

1 X Micro-usb 2.0 Type B Console

1 X Serial (rs-232) Rj-45 Console

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 1 (installed) / 2 (max)

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Power Provided : 550 Watt

Power Consumption Operational : 201 Watt

80 Plus Certification : 80 Plus Platinum

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
