Detail overview

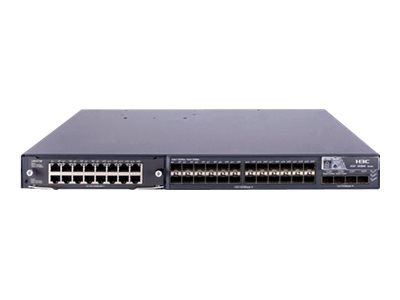

HPE - 5800-24g-sfp Switch - Switch - 24 Ports - Managed - Rack-mountable (JC103-61201).

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable - 1u

Subtype : Gigabit Ethernet

Ports : 24 X Gigabit Sfp + 4 X Gigabit Sfp / 10 Gigabit Sfp+

Performance : Routing/switching Capacity : 208 Gbps ¦ Throughput : 155 Mpps

Capacity : Routing Table Entries : 16000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : Yes
crouting Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Pim-ssm, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Is-isv6, Mpls

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Https, Cli

Encryption Algorithm : Ike, Ssl, Pki

Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs

Features : Flow Control, Routing, Layer 3 Switching, Layer 2 Switching, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Dos Attack Prevention, Port Mirroring, Ipv6 Support, Weighted Random Early Detection (wred), Sflow, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Mld Snooping, Equal-cost Multipath (ecmp), Stp Root Guard, Unicast Reverse Path Forwarding (urpf)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp)

Ram : 2 Gb - Sdram

Flash Memory : 512 Mb

Expansion / Connectivity :

Interfaces : 24 X Gigabit Lan - Sfp ¦ 4 X Gigabit / 10gbit Lan - Sfp+ ¦ 1 X Serial (console) - Rj-45 - Management

Expansion Slots : 1 (total) / 1 (free) X Expansion Slot

Condition : New Sealed Spare.
Availability : In Stock.
Our Warranty : 30 Days.
