Detail overview

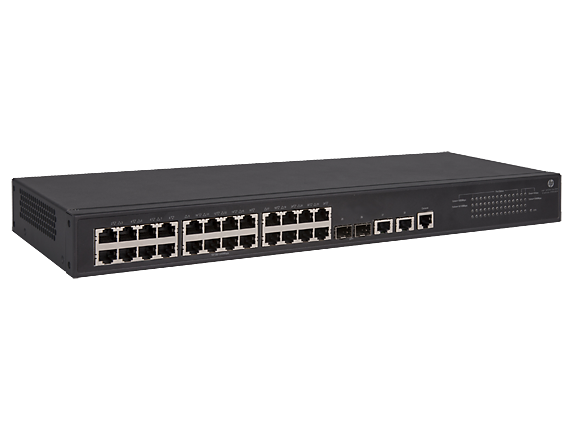

HPE - 5130-24g-2sfp+-2xgt Ei - Switch - 24 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Ethernet Sfp+ / 1 Gigabit Ethernet Sfp+ + 2 X 10 Gigabit Ethernet
  • Performance : Throughput : 96 Mpps ¦ Routing/switching Capacity : 128 Gbps
  • Capacity : Mstp Instances : Up To 64 ¦ Simultaneous Vlans : 4094 ¦ Ipv4 Routing Table Entries : 512 ¦ Ipv6 Routing Table Entries : 256
  • Mac Address Table Size : 16384 Entries
  • Jumbo Frame Support : 9kb
  • Routing Protocol : Rip-1, Rip-2, Igmp, Static Ipv4 Routing, Static Ipv6 Routing
  • Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh-2, Scp
  • Encryption Algorithm : Ssl
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs
  • Features : Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Port Aggregation Protocol (pagp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Dhcp Server, Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Stp Root Guard, Ipv4 Support, Lldp Support, Smart Link Pass-through, Dynamic Arp Protection, Dhcp Protection, Port Isolation, Non Blocking Ports, Strict Priority (sp), Intelligent Resilient Framework Technology (irf), 1.5mb Packet Buffer, Openflow Support, Ip Source Guard
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3az
  • Ram : 1 Gb - Sdram
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
    interfaces :
  • 24 X 1000base-t - Rj-45
  • 2 X Gigabit / 10gbit Lan - Sfp+
  • 2 X Gigabit / 10gbit Lan - Rj-45
  • 1 X Serial (console) - Rj-45

    Power :
  • Power Device : External Power Adapter
  • Voltage Required : Ac 120/230 V

    Condition : Refurbished
    Availability : In Stock
    Our Warranty : 30 Days
