Detail overview

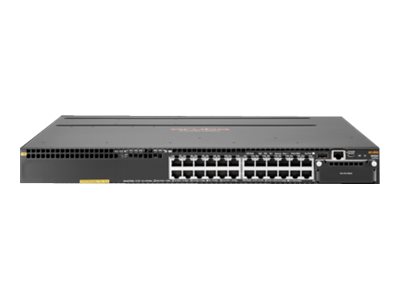

HPE JL071-61101 Aruba 3810m - Switch - 24 Ports - Managed - Rack-mountable.

Key Features :

Device Type : Switch - 24 Ports - Managed

Enclosure Type : Rack-mountable - 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000

Performance : Routing/switching Capacity : 160 Gbps , Switching Fabric Bandwidth : 169 Gbps , Latency (1 Gbps) : 2.8 Is , Latency (10 Gbps) : 1.8 Is , Throughput (64-byte Packet Size) : 95.2 Mpps

Capacity : Routing Tables : 10000

Mac Address Table Size : 64k Entries

Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Bgp, Ospfv2, Ospfv3

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3, Snmp 2c, Ssh-2, Xrmon

Encryption Algorithm : Ssl

Authentication Method : Radius, Tacacs+

Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Vlan Support, Syslog Support, Diffserv Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Jumbo Frames Support, Lldp Support, Link Aggregation Control Protocol (lacp)

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ax

Expansion / Connectivity :

Interfaces : 24 X 1000base-t - Rj-45 , 1 X Network Stack Device , 1 X Console - Rj-45 , 1 X Management (lan) - Rj-45 , 1 X Micro-usb

Expansion Slots : 1 (total) / 1 (free) X Expansion Slot

Power :

Power Device : Internal Power Supply (not Installed)

Installed Qty : 0 ( 2 Max)

Condition : New Open Box.
Availability : In Stock.
Our Warranty : 30 Days
