Detail overview

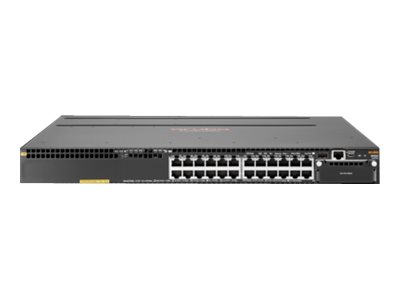

HPE JL073-61001 Aruba 3810m 24g Poe+ 1-slot Switch - Switch - 24 Ports - Managed - Rack-mountable.

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable - 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 (poe+)

Power Over Ethernet (poe) : Poe+

Performance : Latency (1000base-t) : 2.8 Μs ¦ Latency (10 Gbps) : 1.8 Μs ¦ Latency (40 Gbps) : 1.5 Μs ¦ Throughput (64-byte Packet Size) : Up To 95.2 Mpps ¦ Routing/switching Capacity : 160 Gbps ¦ Switching Fabric Bandwidth : 169 Gbps

Capacity : Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000

Mac Address Table Size : 64k Entries

Jumbo Frame Support : Yes

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Rmon, Telnet, Snmp 3, Http, Ssh, Ssh-2, Cli, Xrmon

Encryption Algorithm : Ssl

Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Arp Support, Spanning Tree Protocol (stp) Support, Per-vlan Spanning Tree (pvst), Access Control List (acl) Support, Quality Of Service (qos), Device Link Detection Protocol (dldp) Support, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Sflow V5, Type Of Service (tos), Openflow Support, Internet Control Message Protocol (icmp)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.11n, Ieee 802.1ab (lldp), Ieee 802.3at

Processor : 2

Ram : 6 Gb - Ddr3 Sdram

Flash Memory : 1 Gb

Expansion / Connectivity :

Interfaces : 24 X 1000base-t - Rj-45 - Poe+ ¦ 1 X Serial (console) - Rj-45 - Management ¦ 1 X Management - Rj-45 ¦ 1 X - Rj-45 ¦ 1 X Micro-usb - Type B

Expansion Slots : 1 (total) / 1 (free) X Expansion Slot ¦ 1 (total) / 1 (free) X Stacking Module Slot

Power :

Power Device : Internal Power Supply (not Installed) - Hot-plug

Installed Qty : 0 ( 2 Max)

Energy Star Qualified : Yes

Condition : New Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
