Detail overview

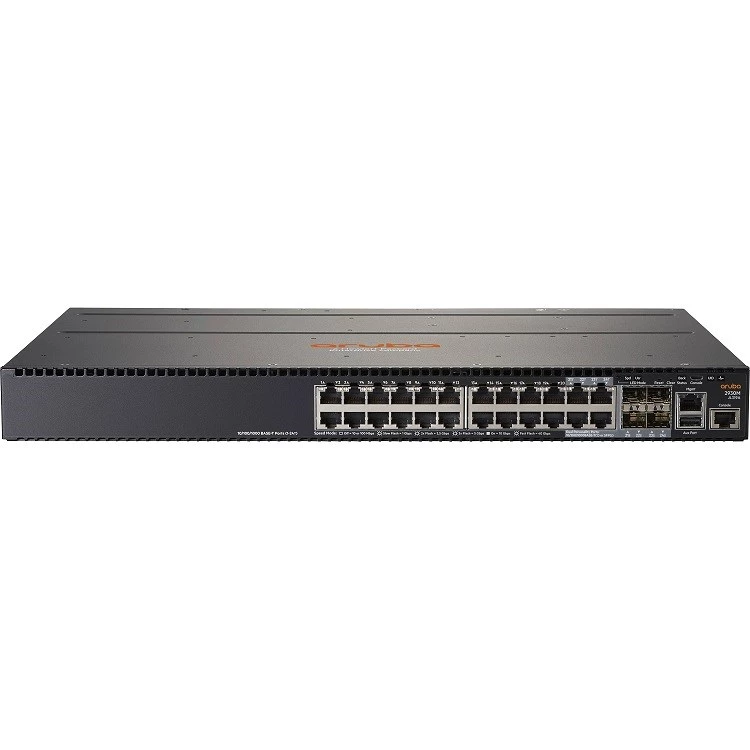

Hpe Jl319a Aruba 2930m 24g 1-slot Switch 24 Ports Managed Rack-mountable.:

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 20 X 10/100/1000 + 4 X Combo Gigabit Sfp
  • Performance : Throughput: 95.2 Mpps Switching Capacity: 128 Gbps Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4 Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8
  • Capacity : Jumbo Frame Size: 9220 Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000
  • Mac Address Table Size : 32768 Entries
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl, Tls
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii, Lldp-med, Stp Bpdu Guard
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.3az, Ieee 802.1ax, Ieee 802.3bz
  • Processor : 1 X Arm Cortex-a9: 1.016 Ghz
  • Ram : 1 Gb Ddr3 Sdram
  • Flash Memory : 4 Gb

    Expansion / Connectivity :
    Interfaces :
  • 20 X 1000base-t Rj-45 4 X 1000base-t
  • 1 X Serial (console)
  • 1 X Usb Type B
  • 1 X 1000base-t Management

    Expansion Slots :
  • 1 (total) / 1 (free) X Stacking Module Slot
  • 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V (50/60 Hz)
  • Power Consumption Operational : 93 Watt
  • 80 Plus Certification : 80 Plus Silver

    Condition : New Retail Factory Sealed.
    Availability : In Stock.
    Manufacturer Warranty : Limited Lifetime.
    Our Warranty : 30 Days.
