Detail overview

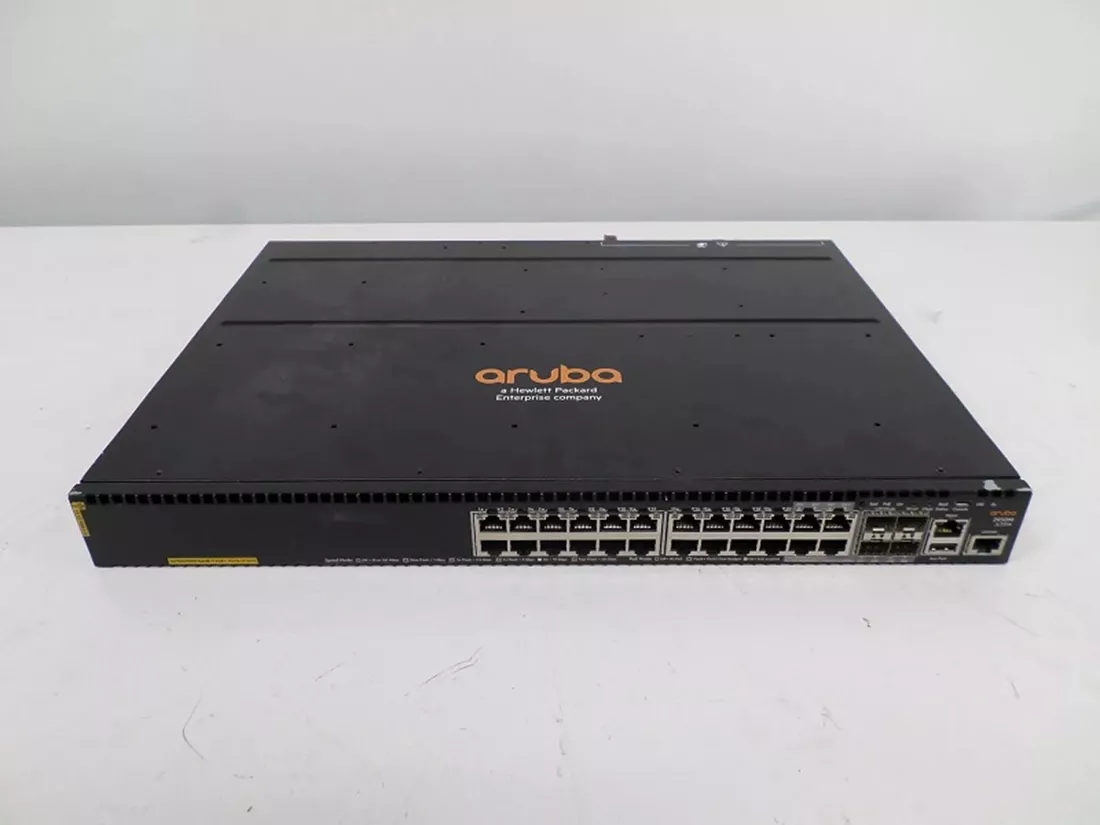

HPE JL320-61101 Aruba 2930m 24g Poe+ 1-slot - Switch - 24 Ports - Managed - Rack-mountable:

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 20 X 10/100/1000 (poe+) + 4 X Combo Gigabit Sfp
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 720 W
  • Performance : Throughput: 95.2 Mpps
  • Switching Capacity: 128 Gbps
  • Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4
  • Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8
  • Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256
  • Mac Address Table Size : 32768 Entries
  • Jumbo Frame Support : 9220 Bytes
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl, Tls
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii, Lldp-med, Stp Bpdu Guard
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax, Ieee 802.3bz
    processor : 1 X Arm Cortex-a9: 1.016 Ghz

  • Ram : 1 Gb Ddr3 Sdram
  • Flash Memory : 4 Gb

    Expansion / Connectivity
    Interfaces
  • 20 X 1000base-t Rj-45 Poe+
  • 4 X 1000base-t 1 X Serial (console)
  • 1 X Usb Type B 1 X 1000base-t Management
    Expansion Slots
  • 1 (total) / 1 (free) X Stacking Module Slot
  • 1 (total) / 1 (free) X Expansion Slot

    Power
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V (50/60 Hz)
  • 80 Plus Certification : 80 Plus Silver

    Condition : New Retail Factory Sealed.
    Availability : In Stock.
    Manufacturer Warranty : Lifetime
    Our Warranty : 30 Days
