Detail overview

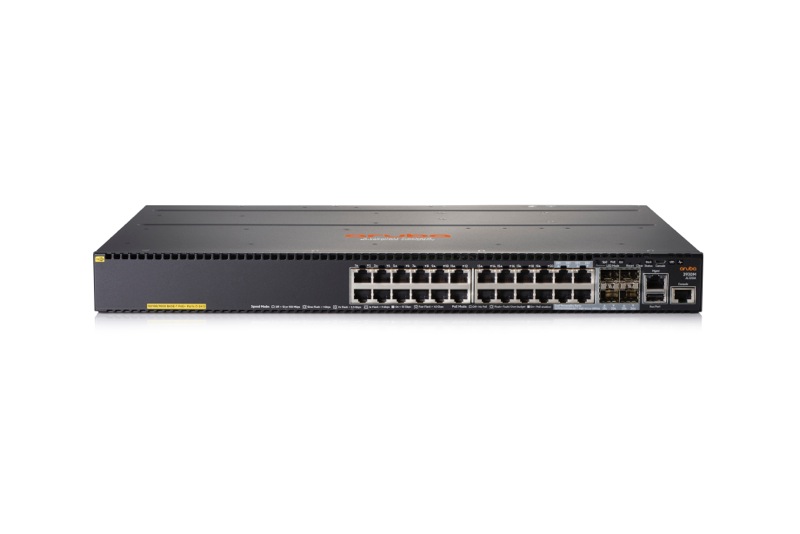

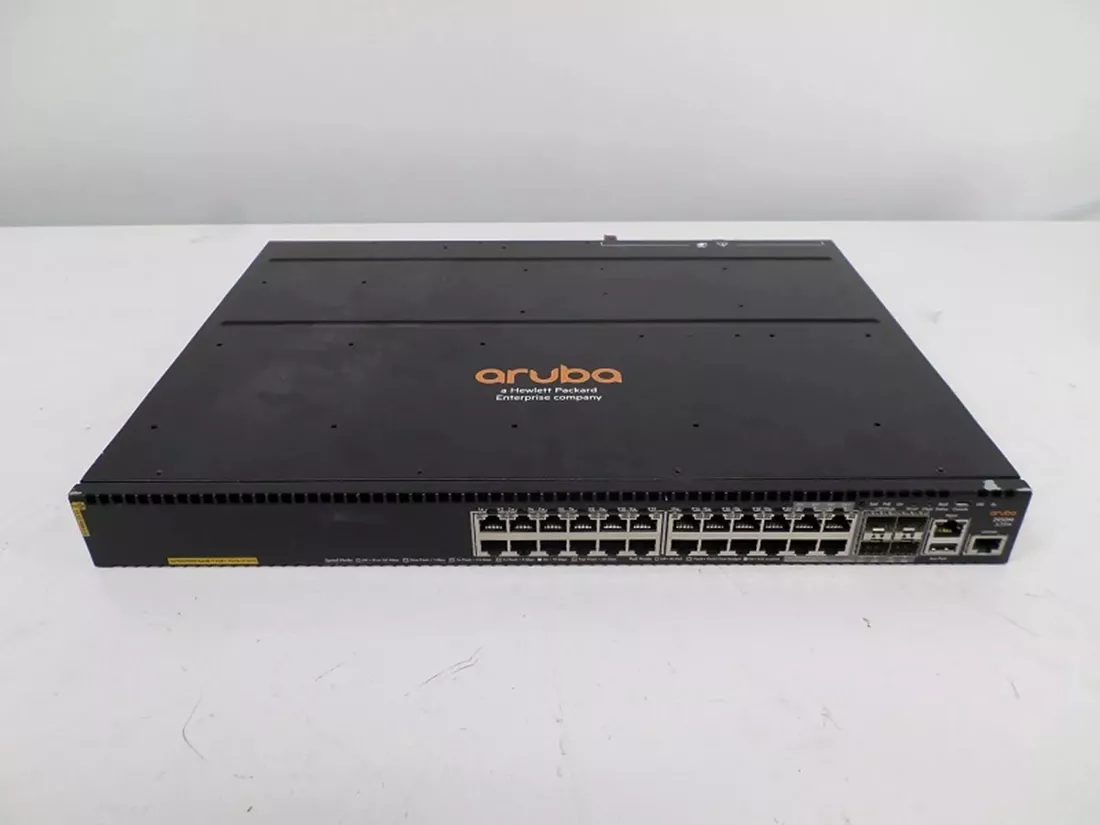

HPE JL320A Aruba 2930m 24g Poe+ 1-slot - Switch - 24 Ports - Managed - Rack-mountable:
Key Features :
Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 20 X 10/100/1000 (poe+) + 4 X Combo Gigabit Sfp
Power Over Ethernet (poe) : Poe+
Poe Budget : 720 W
Performance : Throughput: 95.2 Mpps
Switching Capacity: 128 Gbps
Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4
Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8
Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256
Mac Address Table Size : 32768 Entries
Jumbo Frame Support : 9220 Bytes
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl, Tls
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii, Lldp-med, Stp Bpdu Guard
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax, Ieee 802.3bz
processor : 1 X Arm Cortex-a9: 1.016 Ghz
Ram : 1 Gb Ddr3 Sdram
Flash Memory : 4 Gb
Expansion / Connectivity
Interfaces
20 X 1000base-t Rj-45 Poe+
4 X 1000base-t 1 X Serial (console)
1 X Usb Type B 1 X 1000base-t Management
Expansion Slots
1 (total) / 1 (free) X Stacking Module Slot
1 (total) / 1 (free) X Expansion Slot
Power
Power Device : Internal Power Supply
Installed Qty : 0 (installed) / 2 (max)
Voltage Required : Ac 120/230 V (50/60 Hz)
80 Plus Certification : 80 Plus Silver
Condition : New Retail Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Lifetime
Our Warranty : 30 Days
