** Image may not exactly match product **

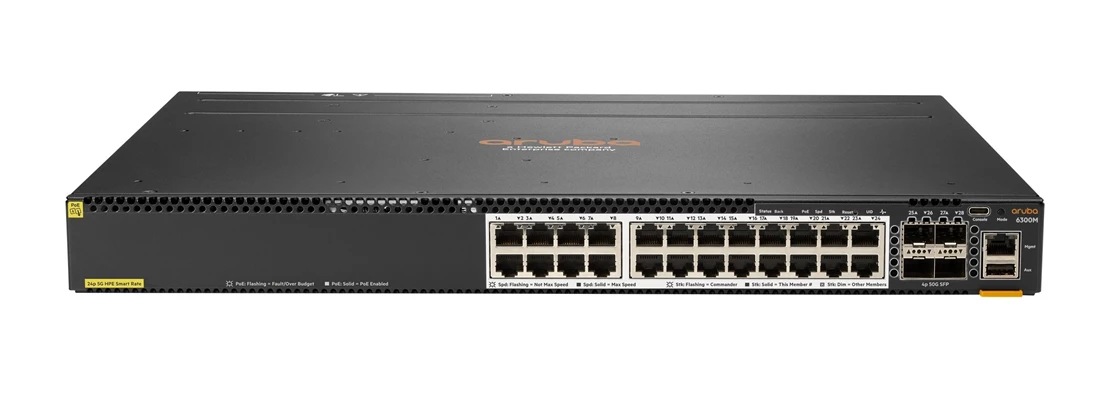

HPE JL660-61101 Aruba 6300M 24Sr5 Cl6 POE+ 4Sfp56 Switch
JL660-61101
JL660-61101
JL660-61101
JL660-61101
JL660-61101

HPE JL660-61101 Aruba 6300M 24Sr5 Cl6 POE+ 4Sfp56 Switch

Part Number: JL660-61101
BRAND: HPE | More NETWORKING from HPE
$5,900.00
Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE JL660-61101 Aruba 6300m 24-port HPE Smart Rate 1/2.5/5gbe Class 6 Poe+ And 4-port Sfp56 Switch ( No Psu Added -minimum 1 Required Max 2 Ordered Separately) :

Key Features :

  • Device Type: Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 1/2.5/5/10gbase-t + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)
  • Power Over Ethernet (poe): Poe+
  • Poe Budget: 1440 W
  • Performance: Switching Capacity: 640 Gbps Throughput: 476 Mpps Latency (1 Gbps): 4.24 Μs Latency (10 Gbps): 1.5 Μs Latency (25 Gbps): 2.91 Μs Latency (50 Gbps): 3.49 Μs Stacking Bandwidth: 200 Gbps
  • Capacity: Switched Virtual Interfaces (svis): 1000 Ipv4 Host Table Capacity: 32000 Ipv6 Host Table Capacity: 32000 Ipv4 Routes (unicast): 64000 Ipv6 Routes (unicast): 32000 Ipv4 Routes (multicast): 8000 Ipv6 Routes (multicast): 8000 Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 Mac Acl Entries (ingress): 5000 Ipv4 Acl Entries (egress): 2000 Ipv6 Acl Entries (egress): 500 Mac Acl Entries (egress): 2000
  • Mac Address Table Size: 32000 Entries
  • Jumbo Frame Support: 9198 Bytes
  • Routing Protocol: Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol: Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp
  • Authentication Method: Radius, Tacacs+
  • Features: Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, High Availability, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Strict Priority (sp), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Front To Side Airflow, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
  • Compliant Standards: Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.3at, Ieee 802.3bz, Ieee 802.3bt
  • Processor: 1 X Arm Cortex-a72: 1.78 Ghz
  • Ram: 8 Gb Ddr4 Sdram
  • Flash Memory: 32 Gb

    Expansion / Connectivity :
    Interfaces:
  • 24 X 1/2.5/5/10gbase-t Rj-45 Poe+ - 60 W
  • 4 X 1gbit/10gbit/25gbit/50gbit Sfp56
  • 1 X Usb-c Console
  • 1 X Management
  • 1 X Usb Type A

    Power :
  • Power Device: Internal Power Supply
  • Installed Qty: 0 (installed) / 2 (max) ( Minimum 1 Required)
  • 80 Plus Certification: 80 Plus Silver
  • Energy Star Certified: Yes
  • Max Poe Power: 1440w
  • Supported Psu: Jl086a, Jl087a, Jl670a

    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
