Detail overview

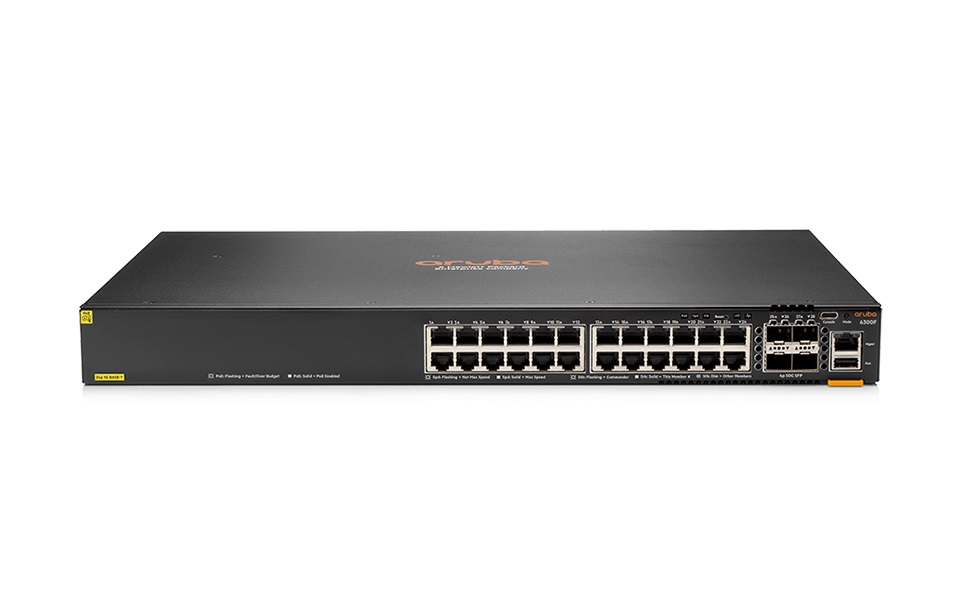

HPE JL666-61101 Aruba 6300f 24-port 1gbe Class 4 Poe 370w And 4-port Sfp56 Switch ( Internal (fixed) Powersupply (950w)):

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 (poe+) + 4 X 50 Gigabit Ethernet Sfp56

Power Over Ethernet (poe) : Poe+

Poe Budget : 370 W

Performance : Switching Capacity: 448 Gbps ¦ Switching Throughput: 334 Mpps ¦ 1 Gbps Average Latency (64-byte Packets): 2.28 Μs ¦ 10 Gbps Average Latency (64-byte Packets): 1.46 Μs ¦ 25 Gbps Average Latency (64-byte Packets): 1.9 Μs ¦ 50 Gbps Average Latency (64-byte Packets): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps

Capacity : Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Bgp-4, Bgp, Igmp, Ospfv2, Pim-dm, Igmpv3, Msdp, Mldv2, Mld, Cidr

Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Xrmon, Sftp

Encryption Algorithm : Ssl, Fips 140-2

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Dhcp Support, Bootp Support, Arp Support, Vlan Support, Syslog Support, Port Mirroring, Diffserv Support, Ipv6 Support, Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Mld Snooping, Trusted Platform Module (tpm), Front To Back Airflow, Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Snmp Trap, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Strict Priority (sp), Tagged Vlan, 8mb Packet Buffer, 802.1x Authentication, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Link Aggregation, Ethernet Virtual Private Network (evpn), Network Timing Protocol (ntp), Lldp-med, Denial Of Service (dos) Protection, Rapid Reconfiguration Of Spanning Tree (rstp), Cisco Discovery Protocol (cdp), Bootstrap Router (bsr) Mechanism

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3an, Ieee 802.3at, Ieee 802.3ba, Ieee 802.1ax, Itu-t G.8032, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.3cc, Itu-t Y.1344, Ieee 802.3cd

Processor : 1 X Arm Cortex-a72: 1.8 Ghz

Ram : 8 Gb Ddr4 Sdram

Flash Memory : 32 Gb

Expansion / Connectivity :
Interfaces :

24 X 1000base-t Rj-45 Poe+ - 30 W

4 X 50gbit Lan Sfp56

1 X Console (usb) Type C

1 X Usb Type A

Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
