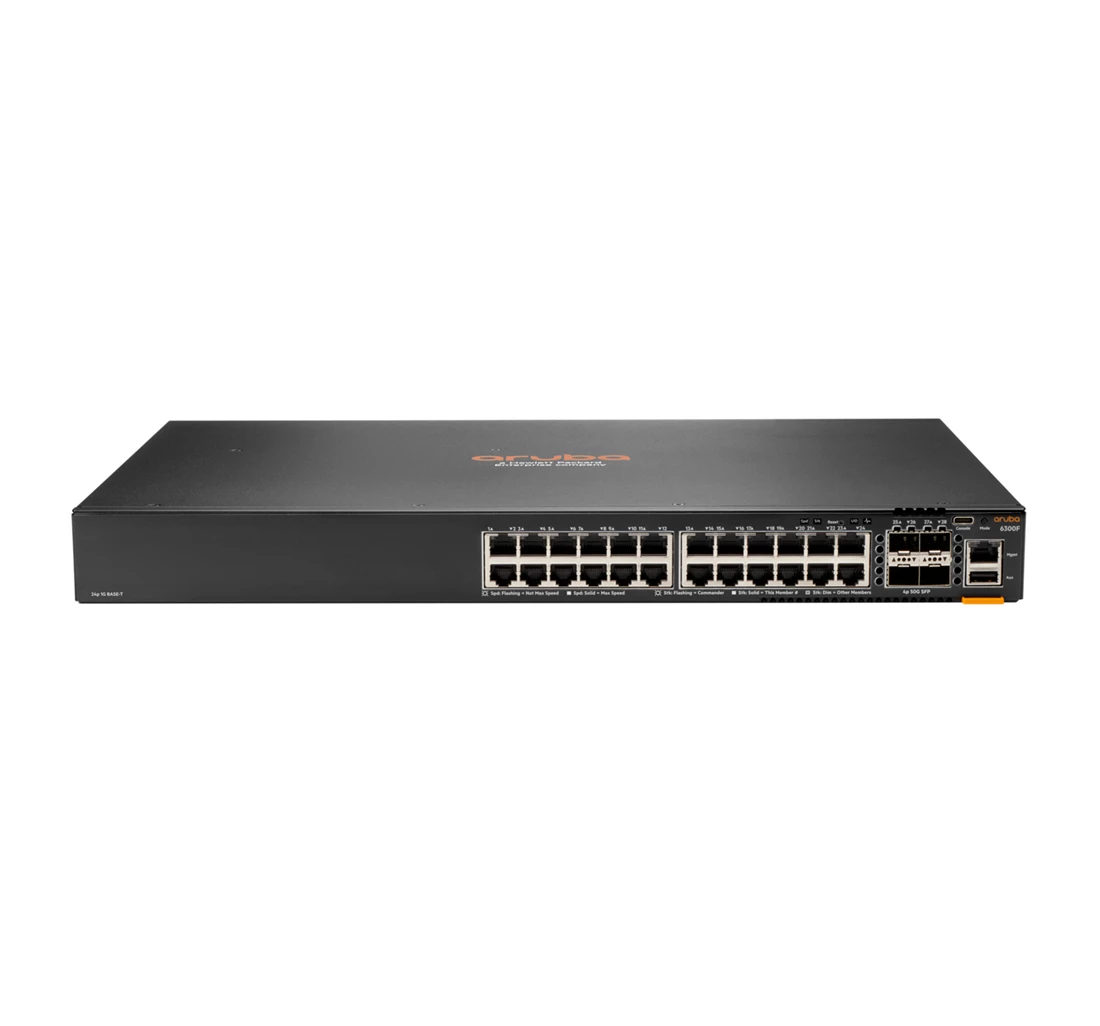

HPE JL668-61001 Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch

HPE JL668-61001 Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch

Part Number: JL668-61001
BRAND: HPE | More NETWORKING from HPE
$3,695.00
Capacity: 24 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE JL668-61001 Aruba 6300f 24-port 1gbe And 4-port Sfp56 Switch ( Internal (fixed) Power Supply (200w).

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)

Performance : Switching Capacity: 448 Gbps ¦ Throughput: 334 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Latency (25 Gbps): 1.9 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps

Capacity : Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Strict Priority (sp), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Left/front To Back Airflow, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax

Processor : 1 X Arm Cortex-a72: 1.78 Ghz

Ram : 8 Gb Ddr4 Sdram

Flash Memory : 32 Gb

expansion / Connectivity
Interfaces :

24 X 10/100/1000 Base-t Rj-45 Poe+

4 X 1gbit/10gbit/25gbit/50gbit Sfp56

1 X Usb-c Console

1 X Management

1 X Usb Type A

Condition : HPE Renew Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
